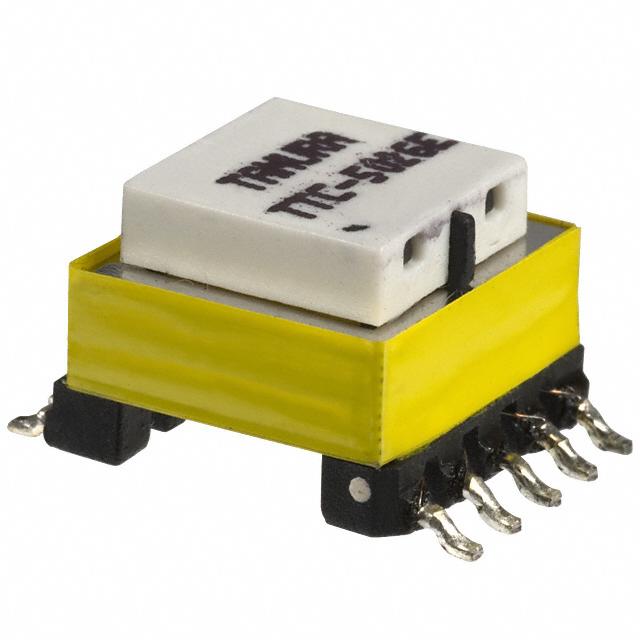

TTC-5026
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-5026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-5026 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER TELECOMM 600:490 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-5026 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER TELECOMM 600:490 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5856 pcs | Data sheet | TTC-5026 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1875VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | Gull Wing |
| Size / Dimension | 0.532" L x 0.551" W (13.50mm x 14.00mm) | Series | TTC |
| Return Loss | - | Power Level | - |
| Packaging | Tape & Reel (TR) | Other Names | MT7210TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 490CT |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.409" (10.40mm) |
| Frequency Response | ±0.3dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 47.8 Ohm | DC Resistance (DCR) - Primary | 23.8 Ohm |
| Approvals | UL1950, UL60950 |
