TTC-5029

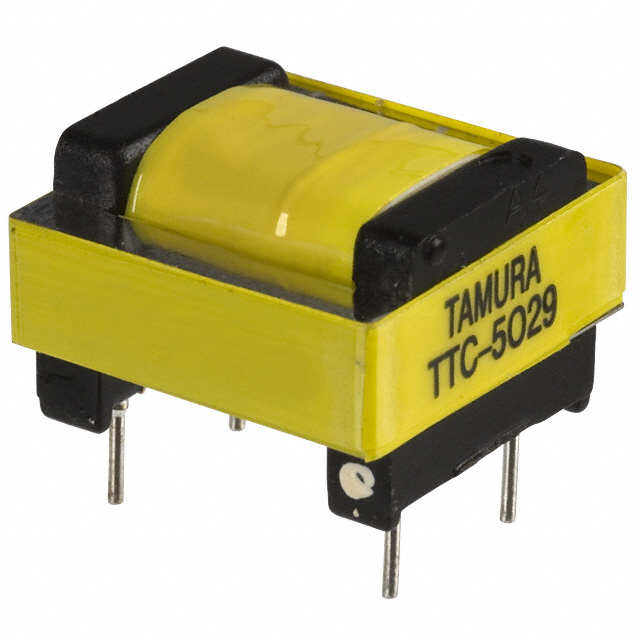

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-5029 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5029 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-5029 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER TELECOMM 600:600 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.477 | $1.882 | $1.833 | $1.684 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.585 | $1.536 | $1.486 | $1.436 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-5029 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER TELECOMM 600:600 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23078 pcs | Data sheet | TTC-5029 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1875VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Series | TTC |
| Return Loss | 20dB Min @ 200Hz ~ 4kHz | Power Level | - |
| Packaging | Bulk | Other Names | MT7213 TTC5029 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.472" (12.00mm) | Frequency Response | ±0.2dB |
| Frequency Range | 200Hz ~ 4kHz | DC Resistance (DCR) - Secondary | 40 Ohm |
| DC Resistance (DCR) - Primary | 40 Ohm | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
