Home > Products > Transformers > Audio Transformers > TY-403P

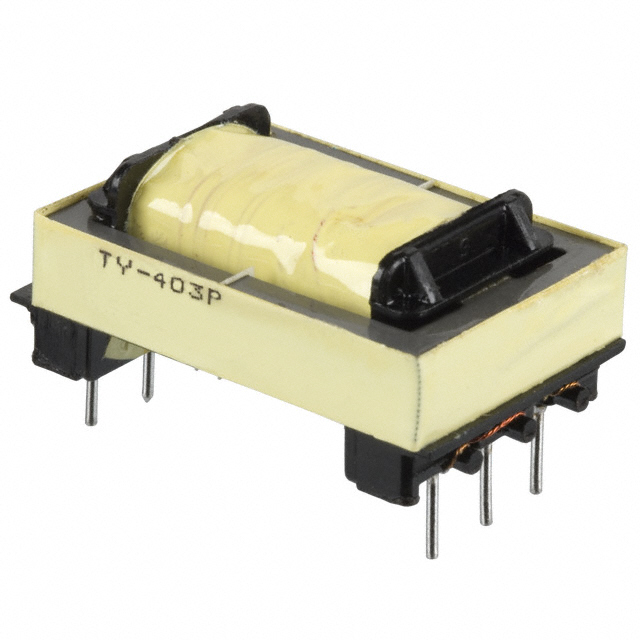

TY-403P

TY-403P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-403P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TY-403P
Manufacturer Triad Magnetics
Description TRANSF 600 SPLIT SEC .90MA TEL
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 33203 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$1.871$1.423$1.385$1.273
100 pcs250 pcs500 pcs1000 pcs
$1.198$1.161$1.123$1.086

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.871

Product parameter

Part Number TY-403P Manufacturer Triad Magnetics
Description TRANSF 600 SPLIT SEC .90MA TEL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 33203 pcs Data sheet TY-403P Datasheet
Category Transformers Weight -
Voltage - Isolation 1500VAC Turns Ratio - Primary:Secondary 1.81:1
Transformer Type Data/Voice Coupling Termination Style PC Pin
Size / Dimension 0.815" L x 1.250" W (20.70mm x 31.75mm) Series TY
Return Loss 15dB Typ Power Level -45dB ~ 7dB
Packaging Bulk Other Names 237-1136
TY403P
Operating Temperature - Mounting Type Through Hole
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss 1.75dB Typ Impedance - Secondary (Ohms) 600
Impedance - Primary (Ohms) 600 Height - Seated (Max) 0.530" (13.46mm)
Frequency Response ±0.5dB Frequency Range 300Hz ~ 3.5kHz
DC Resistance (DCR) - Secondary - DC Resistance (DCR) - Primary -
Approvals -
