Home > Products > Transformers > Audio Transformers > TY-401P

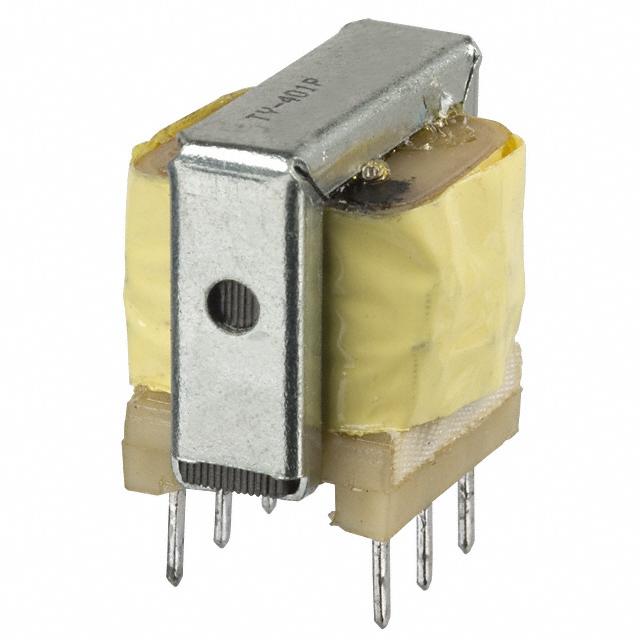

TY-401P

TY-401P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-401P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TY-401P
Manufacturer Triad Magnetics
Description TRANSF 600 OHM CTAP 90MA DC TE
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 32535 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$1.872$1.422$1.384$1.272
100 pcs250 pcs500 pcs1000 pcs
$1.197$1.16$1.122$1.085

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.872

Product parameter

Part Number TY-401P Manufacturer Triad Magnetics
Description TRANSF 600 OHM CTAP 90MA DC TE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 32535 pcs Data sheet TY-401P
Category Transformers Weight -
Voltage - Isolation 1500VAC Turns Ratio - Primary:Secondary 1:1.07
Transformer Type Data/Voice Coupling Termination Style PC Pin
Size / Dimension 0.820" L x 0.715" W (20.83mm x 18.16mm) Series TY
Return Loss 15dB Typ Power Level -45dB ~ 7dB
Packaging Bulk Other Names 10625
237-1134
Operating Temperature - Mounting Type Through Hole
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss 1.75dB Typ Impedance - Secondary (Ohms) 600CT
Impedance - Primary (Ohms) 600CT Height - Seated (Max) 0.750" (19.05mm)
Frequency Response ±0.5dB Frequency Range 300Hz ~ 3.5kHz
DC Resistance (DCR) - Secondary - DC Resistance (DCR) - Primary -
Approvals -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
