Home > Products > Transformers > Audio Transformers > TY-304P-B

TY-304P-B

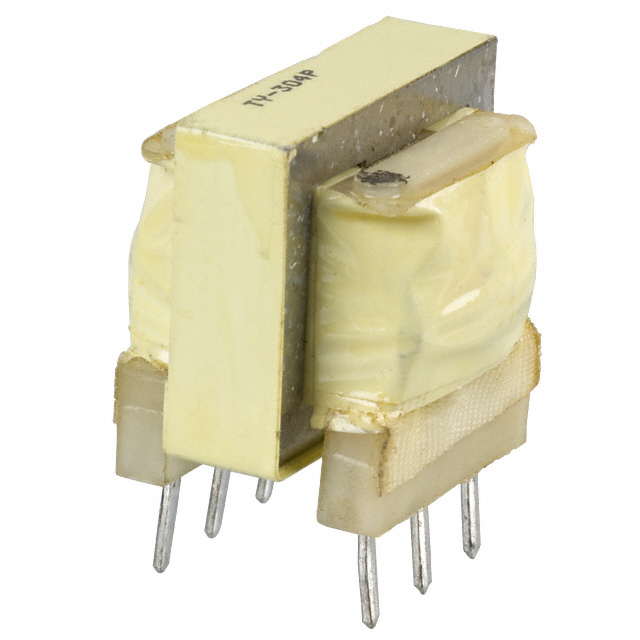

TY-304P-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-304P-B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TY-304P-B
Manufacturer Triad Magnetics
Description TRANSF 600 CT OHM 0MA DC TEL
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 29328 pcs
Reference Price
(In US Dollars)		1200 pcs
$1.216

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.216

Product parameter

Part Number TY-304P-B Manufacturer Triad Magnetics
Description TRANSF 600 CT OHM 0MA DC TEL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 29328 pcs Data sheet TY-304P Datasheet
Category Transformers Voltage - Isolation 1500VAC
Turns Ratio - Primary:Secondary 1:1.05 Transformer Type Data/Voice Coupling
Termination Style PC Pin Size / Dimension 0.790" L x 0.812" W (20.07mm x 20.62mm)
Series TY Return Loss 26dB Typ
Power Level -45dB ~ 7dB Packaging Bulk
Operating Temperature - Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 15 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss 1dB Typ
Impedance - Secondary (Ohms) 600CT Impedance - Primary (Ohms) 600CT
Height - Seated (Max) 0.740" (18.80mm) Frequency Response ±0.5dB
Frequency Range 300Hz ~ 3.5kHz DC Resistance (DCR) - Secondary -
DC Resistance (DCR) - Primary - Approvals -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
