Home > Products > Transformers > Audio Transformers > TY-307P

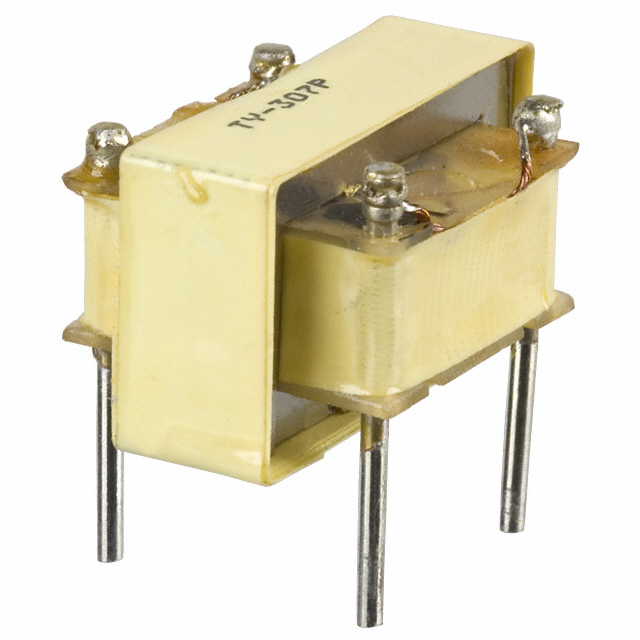

TY-307P

TY-307P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-307P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TY-307P
Manufacturer Triad Magnetics
Description TRANSF 600 OHM 0MA DC TEL
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 26448 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$2.098$1.593$1.552$1.426
100 pcs250 pcs500 pcs1000 pcs
$1.342$1.30$1.258$1.216

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.098

Product parameter

Part Number TY-307P Manufacturer Triad Magnetics
Description TRANSF 600 OHM 0MA DC TEL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 26448 pcs Data sheet TY-307P Datasheet
Category Transformers Weight -
Voltage - Isolation 1500VAC Turns Ratio - Primary:Secondary 1:1.07
Transformer Type Data/Voice Coupling Termination Style PC Pin
Size / Dimension 0.670" L x 0.781" W (17.02mm x 19.84mm) Series TY
Return Loss 26dB Typ Power Level -45dB ~ 7dB
Packaging Bulk Other Names 10621
237-1130
TY307P
Operating Temperature - Mounting Type Through Hole
Manufacturer Standard Lead Time 1 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss 1dB Typ Impedance - Secondary (Ohms) 600
Impedance - Primary (Ohms) 600 Height - Seated (Max) 0.470" (11.94mm)
Frequency Response ±0.5dB Frequency Range 300Hz ~ 3.5kHz
DC Resistance (DCR) - Secondary - DC Resistance (DCR) - Primary -
Approvals -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
