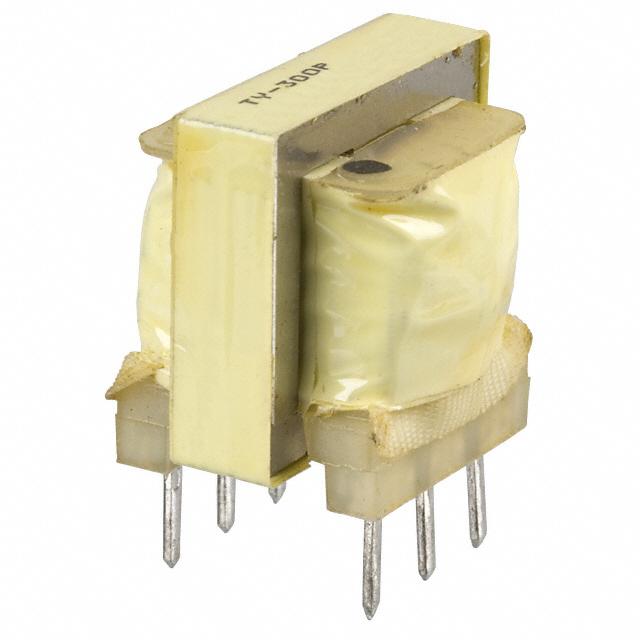

TY-300P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-300P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-300P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-300P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 600 OHM 0MA DC TEL HYBRID |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.276 | $1.729 | $1.684 | $1.547 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.456 | $1.411 | $1.365 | $1.32 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-300P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 600 OHM 0MA DC TEL HYBRID | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22697 pcs | Data sheet | TY-300P Datasheet |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VAC | Turns Ratio - Primary:Secondary | 1:2.48 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) | Series | TY |
| Return Loss | 30dB Typ | Power Level | -45dB ~ 7dB |
| Packaging | Bulk | Other Names | 10614 237-1123 TY300P |
| Operating Temperature | - | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.8dB Typ | Impedance - Secondary (Ohms) | 600/600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.740" (18.80mm) |
| Frequency Response | - | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | - | DC Resistance (DCR) - Primary | - |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
