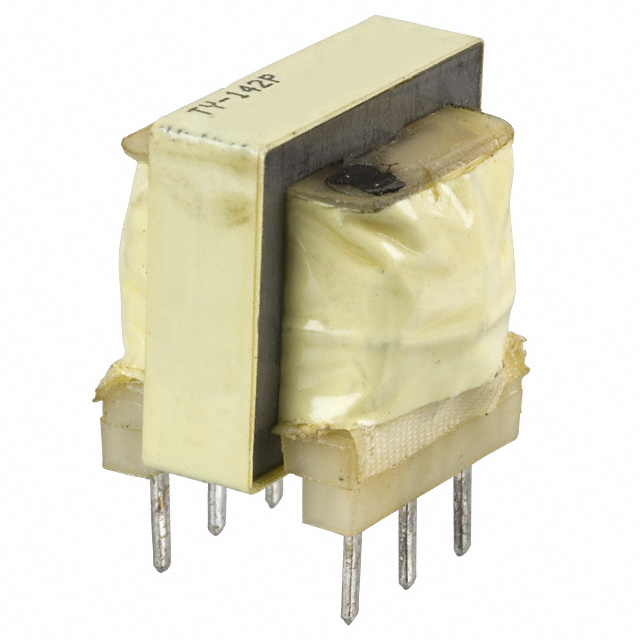

TY-142P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-142P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-142P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-142P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 10K AUDIO CTAP/2K CTAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.069 | $1.573 | $1.531 | $1.407 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.324 | $1.283 | $1.242 | $1.20 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-142P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 10K AUDIO CTAP/2K CTAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31323 pcs | Data sheet | TY-142P Datasheet |
| Category | Transformers | Weight | 0.032 lb (14.51g) |
| Voltage - Isolation | 1500V | Turns Ratio - Primary:Secondary | 2.24:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) | Series | TY |
| Return Loss | 26dB | Power Level | 100mW |
| Packaging | Bulk | Other Names | 10610 237-1119 TY142P |
| Operating Temperature | 0°C ~ 105°C | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB | Impedance - Secondary (Ohms) | 2kCT |
| Impedance - Primary (Ohms) | 10kCT | Height - Seated (Max) | 0.740" (18.80mm) |
| Frequency Response | ±2dB | Frequency Range | 200Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 217 Ohm | DC Resistance (DCR) - Primary | 750 Ohm |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
