Home > Products > Transformers > Audio Transformers > TY-146P-B

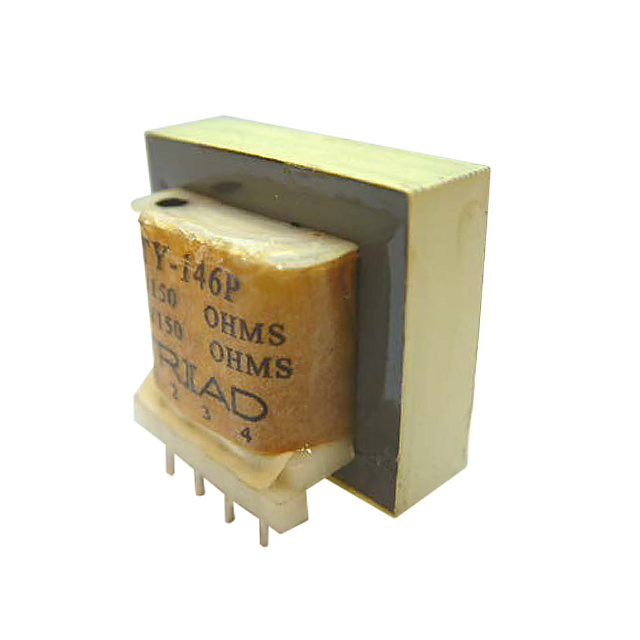

TY-146P-B

TY-146P-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-146P-B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TY-146P-B
Manufacturer Triad Magnetics
Description TRANSF 600 AUDIO CT 150/600CT 15
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 17110 pcs
Reference Price
(In US Dollars)		96 pcs
$1.915

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.915

Product parameter

Part Number TY-146P-B Manufacturer Triad Magnetics
Description TRANSF 600 AUDIO CT 150/600CT 15 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 17110 pcs Data sheet TY-146P Datasheet
Category Transformers Voltage - Isolation 1500V
Turns Ratio - Primary:Secondary 1:1 Transformer Type Data/Voice Coupling
Termination Style PC Pin Size / Dimension 1.375" L x 1.187" W (34.93mm x 30.15mm)
Series TY Return Loss 26dB
Power Level - Packaging Bulk
Operating Temperature 0°C ~ 105°C Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss 1.5dB @ 1kHz
Impedance - Secondary (Ohms) 600, 150/150 Impedance - Primary (Ohms) 600, 150/150
Height - Seated (Max) 1.187" (30.15mm) Frequency Response ±2dB
Frequency Range 200Hz ~ 15kHz DC Resistance (DCR) - Secondary 14.5 Ohm, 22 Ohm
DC Resistance (DCR) - Primary 17 Ohm, 19 Ohm Approvals -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
