TTC-5008

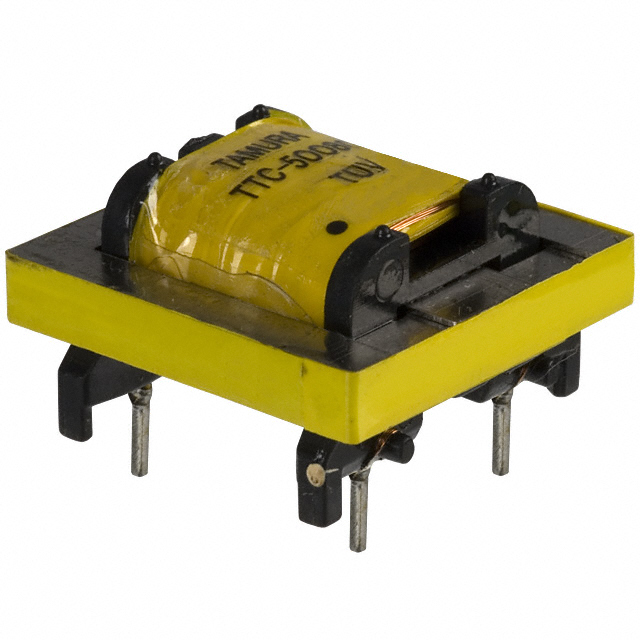

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-5008 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5008 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-5008 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER COUPLING 600:374 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-5008 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER COUPLING 600:374 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4553 pcs | Data sheet | TTC-5008 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1875VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | - | Termination Style | PC Pin |
| Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) | Series | TTC |
| Return Loss | 25dB Min @ 1kHz | Power Level | - |
| Packaging | Bulk | Other Names | MT7227 TTC-5008-ND TTC-5008C |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 2.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 374 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.543" (13.80mm) |
| Frequency Response | ±0.2dB | Frequency Range | 200Hz ~ 4kHz |
| DC Resistance (DCR) - Secondary | 120 Ohm | DC Resistance (DCR) - Primary | 108 Ohm |
| Approvals | UL1950, UL60950, EN60950 |
