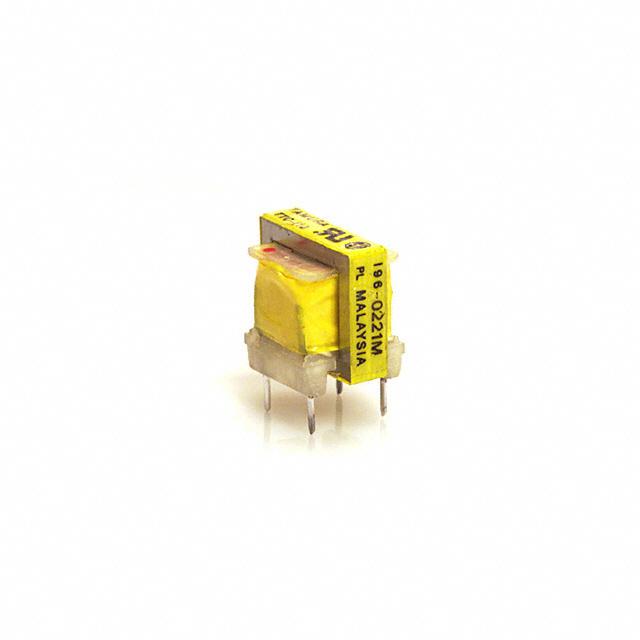

TTC-110
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-110 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-110 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-110 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF TELE COUP 600 OHM 0 MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | ||||
|---|---|---|---|---|---|
| $1.206 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-110 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 600 OHM 0 MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29345 pcs | Data sheet | TTC-110 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1.033 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.799" L x 0.650" W (20.30mm x 16.50mm) | Series | TTC |
| Return Loss | - | Power Level | -40dB ~ 7dB |
| Packaging | Bulk | Other Names | MT4113 T2104 T2104(BOX) T2104(BULK) |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.2dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.736" (18.70mm) | Frequency Response | ±0.5dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 50 Ohm |
| DC Resistance (DCR) - Primary | 36 Ohm | Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
