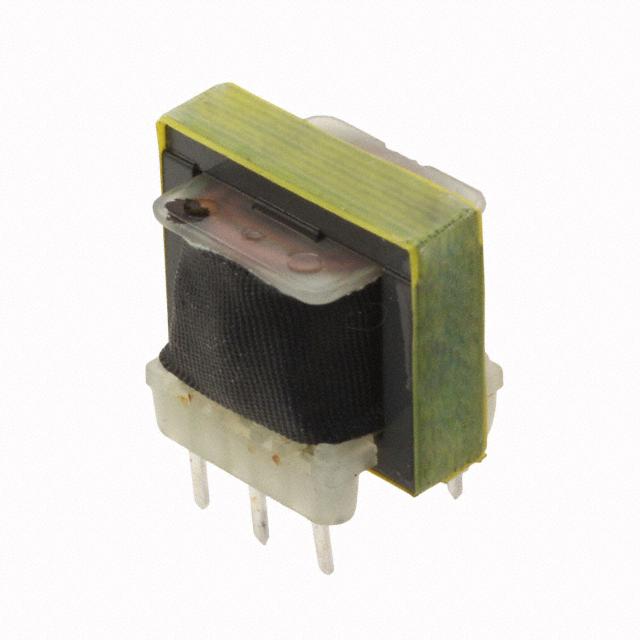

TTC-108
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-108 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-108 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-108 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF TELE COUP 600CT:600CT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.51 | $1.906 | $1.856 | $1.706 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.605 | $1.555 | $1.505 | $1.455 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-108 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 600CT:600CT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21428 pcs | Data sheet | TTC-108 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.799" L x 0.689" W (20.30mm x 17.50mm) | Series | TTC |
| Return Loss | - | Power Level | -45dB ~ 7dB |
| Packaging | Bulk | Other Names | DCM21-PC MT11104 MT4136 TTC108 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.4dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 600CT | Impedance - Primary (Ohms) | 600CT |
| Height - Seated (Max) | 0.752" (19.10mm) | Frequency Response | ±0.5dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 56 Ohm |
| DC Resistance (DCR) - Primary | 44 Ohm | Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
