TTC-109N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-109N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-109N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-109N |
|---|---|
| Manufacturer | Tamura |

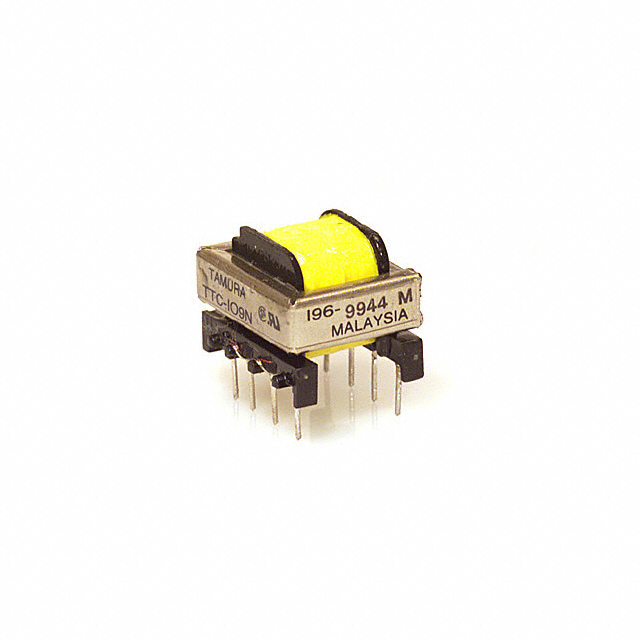

| Description | TRANSF TELE COUP 600 OHM 90MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-109N | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 600 OHM 90MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4966 pcs | Data sheet | TTC-109N |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.823" L x 0.752" W (20.90mm x 19.10mm) | Series | TTC |
| Return Loss | - | Power Level | -45dB ~ 10dB |
| Packaging | Bulk | Other Names | MT4116 T2111 T2111(BOX) T2111(BULK) |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.630" (16.00mm) |
| Frequency Response | -1dB ~ 0.7dB | Frequency Range | 660Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 117 Ohm | DC Resistance (DCR) - Primary | 71 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1862 |
