Home > Products > Transformers > Power Transformers > VPT230-220

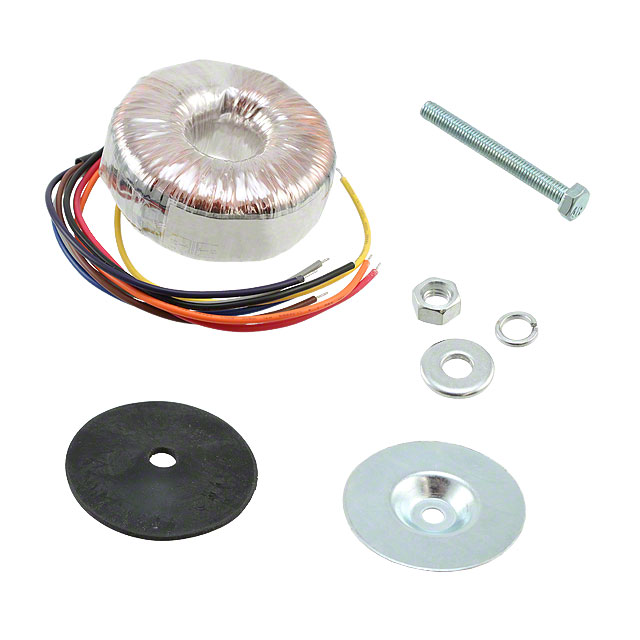

VPT230-220

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT230-220 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT230-220
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5139 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$10.365	$9.147	$8.842	$7.927	$7.622

Product parameter
Data sheet

Product parameter

Part Number	VPT230-220	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5139 pcs	Data sheet	VPT230-220
Category	Transformers	Weight	1.4 lbs (635g)
Voltage - Secondary (Full Load)	Parallel 115V, Series 230V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	80.00mm Dia x 33.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	50 VA
Other Names	237-1331 VPT230220	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 440mA, Series 220mA	Center Tap	No

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
