Home > Products > Transformers > Power Transformers > VPT18-1390

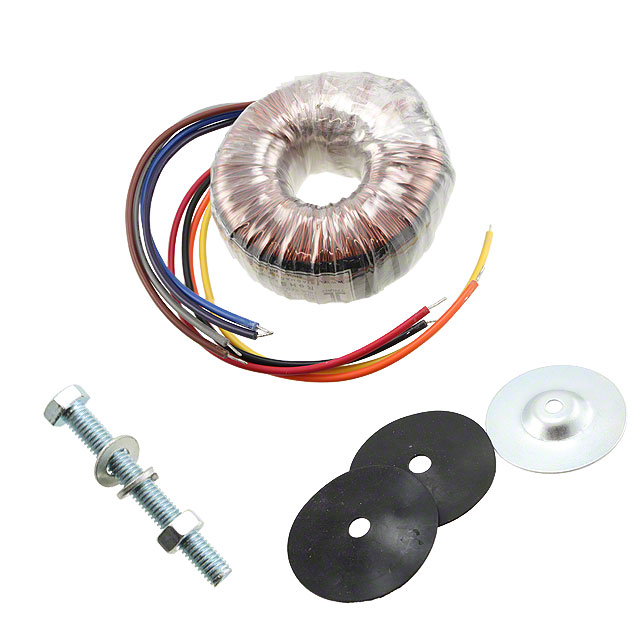

VPT18-1390

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT18-1390 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT18-1390
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 25VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7740 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$6.368	$5.618	$5.43	$4.869	$4.682

Product parameter
Data sheet

Product parameter

Part Number	VPT18-1390	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 25VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7740 pcs	Data sheet	VPT18-1390
Category	Transformers	Weight	0.882 lb (400.07g)
Voltage - Secondary (Full Load)	Parallel 9V, Series 18V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	71.00mm Dia x 32.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	25 VA
Other Names	237-1323 VPT181390	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 2.78A, Series 1.39A	Center Tap	No

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
