Home > Products > Transformers > Power Transformers > VPT100-10000

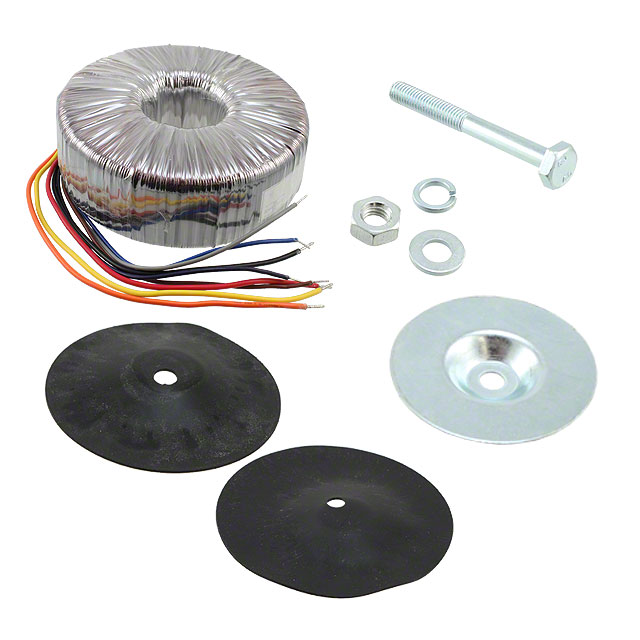

VPT100-10000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT100-10000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT100-10000
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 921 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$50.098	$48.428	$45.088	$41.748

Product parameter
Data sheet

Product parameter

Part Number	VPT100-10000	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	921 pcs	Data sheet	VPT100-10000
Category	Transformers	Weight	18 lbs (8.2kg)
Voltage - Secondary (Full Load)	Parallel 50V, Series 100V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	175.00mm Dia x 68.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	1000 VA
Other Names	237-1359 VPT10010000	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 20A, Series 10A	Center Tap	No

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
