Home > Products > RF/IF and RFID > RF Transceiver Modules > EYSHJNZXZ

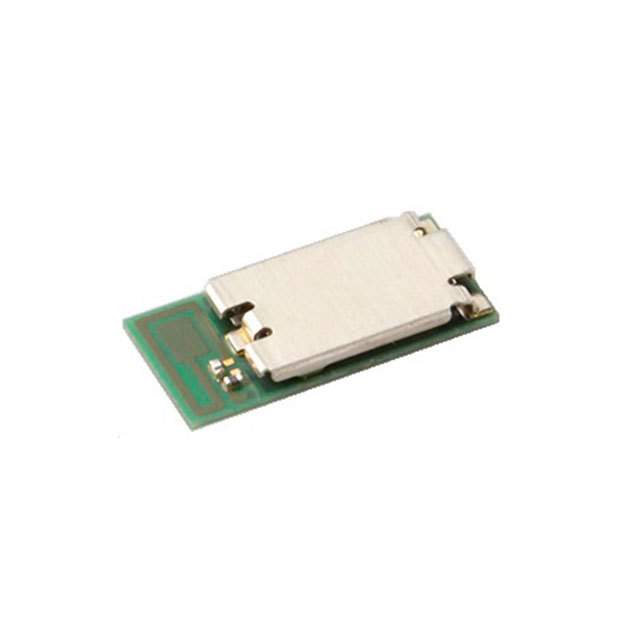

EYSHJNZXZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EYSHJNZXZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EYSHJNZXZ
Manufacturer	Taiyo Yuden
Description	RF TXRX MOD BLUETOOTH TRACE ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14995 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$4.258	$3.902	$3.548	$3.193
	$2.927	$2.661	$2.395

Product parameter
Data sheet

Product parameter

Part Number	EYSHJNZXZ	Manufacturer	Taiyo Yuden
Description	RF TXRX MOD BLUETOOTH TRACE ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14995 pcs	Data sheet	Bluetooth® low energy Module Overview EYSHJNZXZ Datasheet
Category	RF/IF and RFID	Voltage - Supply	1.7 V ~ 3.6 V
Utilized IC / Part	nRF52832	Series	-
Serial Interfaces	I²C, I²S, SPI, UART	Sensitivity	-94dBm
RF Family/Standard	Bluetooth/ANT	Protocol	Bluetooth v4.2
Power - Output	4dBm	Packaging	Cut Tape (CT)
Package / Case	Module	Other Names	587-4711-1
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	GFSK
Memory Size	512kB Flash, 64kB RAM	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	2.4GHz
Data Rate	1Mbps	Current - Transmitting	7.5mA
Current - Receiving	5.4mA	Antenna Type	Integrated, Trace

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
