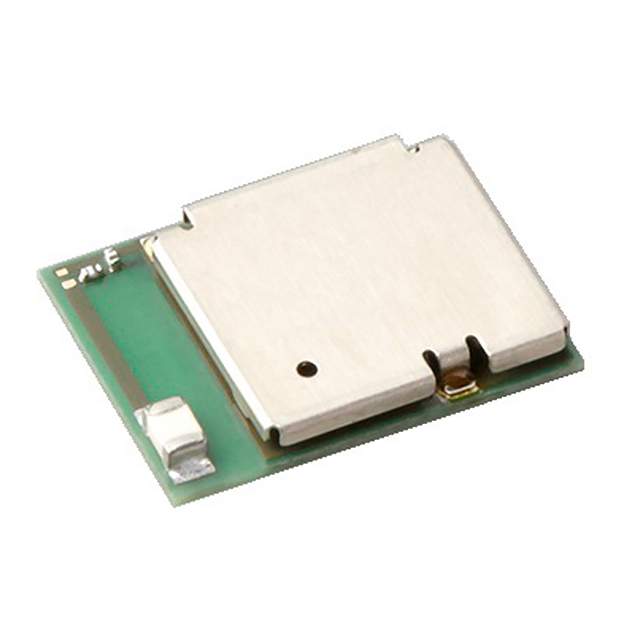

EYSHCNZWZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EYSHCNZWZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EYSHCNZWZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EYSHCNZWZ |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | BLUETOOTH LOW ENERGY 5.0 MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $4.246 | $3.893 | $3.539 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.185 | $2.92 | $2.654 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EYSHCNZWZ | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | BLUETOOTH LOW ENERGY 5.0 MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13996 pcs | Data sheet | EYSHCNZWZ Data ReportBluetooth® low energy Module, FAQEYSHCN Module, Addendum Test ReportWireless Bluetooth® low energy Module OverviewEYSHCNZWZ Bluetooth® Module, Datasheet |
| Category | RF/IF and RFID | Voltage - Supply | 1.7 V ~ 3.6 V |
| Utilized IC / Part | nRF52832 | Series | - |
| Serial Interfaces | I²C, I²S, SPI, UART | Sensitivity | -96dBm |
| RF Family/Standard | Bluetooth/ANT | Protocol | Bluetooth v5.0 |
| Power - Output | 4dBm | Packaging | Cut Tape (CT) |
| Package / Case | Module | Other Names | 587-5979-1 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Modulation | GFSK |
| Memory Size | 512kB Flash, 64kB RAM | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 2.4GHz |
| Data Rate | 2Mbps | Current - Transmitting | 16mA |
| Current - Receiving | 12mA | Antenna Type | Integrated, Chip |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
