Home > Products > RF/IF and RFID > RF Transceiver Modules > EYSHJNZWZ

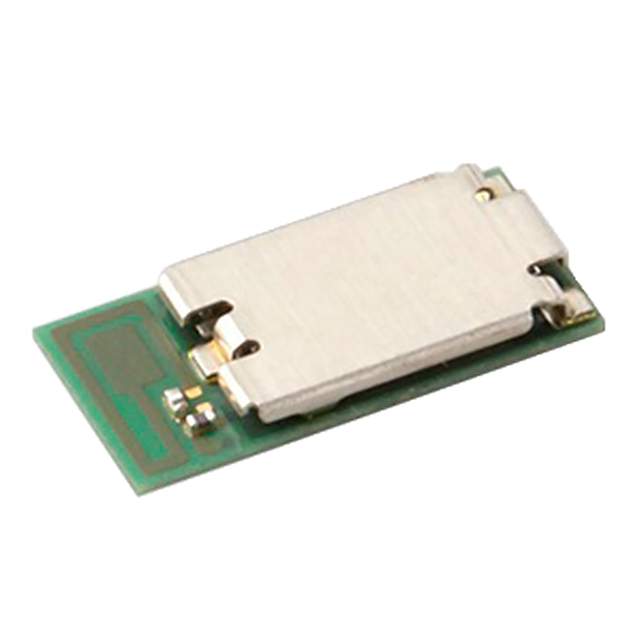

EYSHJNZWZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EYSHJNZWZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EYSHJNZWZ
Manufacturer	Taiyo Yuden
Description	BLUETOOTH LOW ENERGY 5.0 MODULE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15968 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$2.244

Product parameter
Data sheet

Product parameter

Part Number	EYSHJNZWZ	Manufacturer	Taiyo Yuden
Description	BLUETOOTH LOW ENERGY 5.0 MODULE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15968 pcs	Data sheet	Bluetooth® low energy Module, FAQ EYSHJN Module, Addemdum Test Report Wireless Bluetooth® low energy Module Overview EYSHJNZWZ Bluetooth® Module, Datasheet EYSHJNZWZ Data Report
Category	RF/IF and RFID	Voltage - Supply	1.7 V ~ 3.6 V
Utilized IC / Part	nRF52832	Series	-
Serial Interfaces	I²C, I²S, SPI, UART	Sensitivity	-94dBm
RF Family/Standard	Bluetooth/ANT	Protocol	Bluetooth v5.0
Power - Output	4dBm	Packaging	Tape & Reel (TR)
Package / Case	Module	Other Names	587-5980-2 GT EYSHJNZWZ
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	GFSK
Memory Size	512kB Flash, 64kB RAM	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	2.4GHz
Data Rate	2Mbps	Current - Transmitting	16mA
Current - Receiving	12mA	Antenna Type	Integrated, Trace

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
