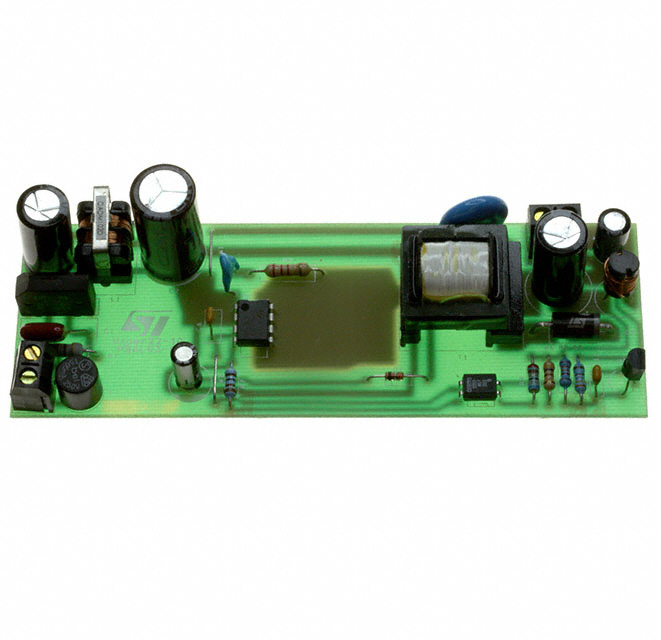

STEVAL-ISA021V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA021V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA021V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA021V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD REF VIPER22A SGL OUTPUT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $7.668 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA021V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD REF VIPER22A SGL OUTPUT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3926 pcs | Data sheet | VIPer22A Ref Board AN1735VIPER22A(AS,DIP)-E |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 12V |
| Voltage - Input | 90 ~ 264 VAC | Utilized IC / Part | VIPer22A |
| Supplied Contents | Board(s) | Series | VIPER™ |
| Regulator Topology | Flyback | Power - Output | 10W |
| Outputs and Type | 1, Isolated | Other Names | 497-5219 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Switching | 60kHz |
| Detailed Description | VIPer22A VIPER™ AC/DC, Primary Side 1, Isolated Outputs Evaluation Board | Current - Output | 840mA |
| Board Type | Fully Populated |
