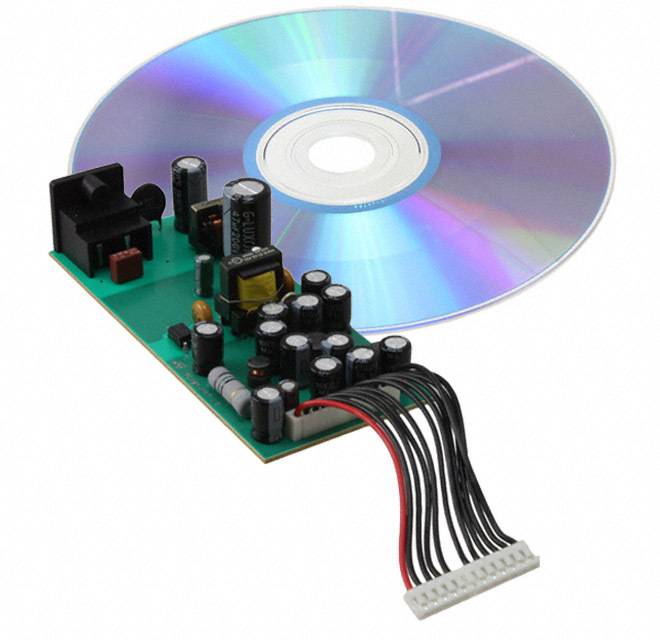

STEVAL-ISA017V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA017V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA017V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA017V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | POWER SUPPLY FOR STB US-110V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA017V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | POWER SUPPLY FOR STB US-110V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5999 pcs | Data sheet | L6565STEVAL-ISA017V1 Data Brief |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V |
| Voltage - Input | 88 ~ 135 VAC | Utilized IC / Part | L6565 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Power - Output | 17W |
| Outputs and Type | 6, Non-Isolated | Other Names | 497-5680 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | - |
| Detailed Description | L6565 - AC/DC, Primary Side 6, Non-Isolated Outputs Evaluation Board | Current - Output | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA |
| Board Type | Fully Populated |
