STEVAL-ISA019V2

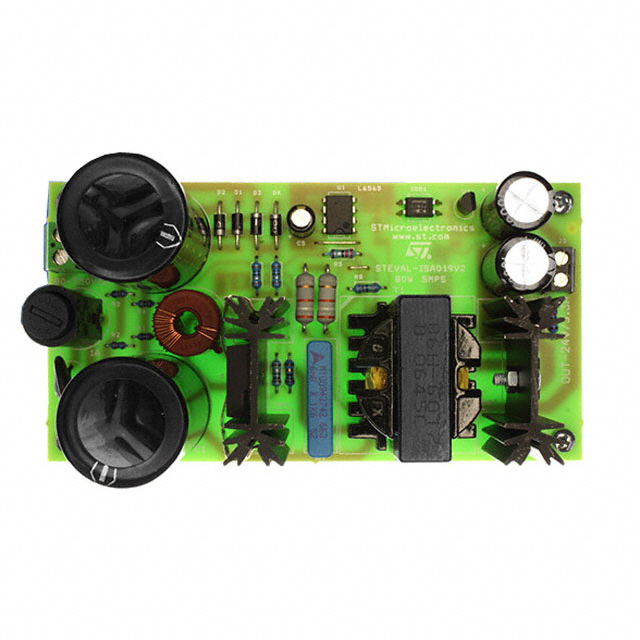

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA019V2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA019V2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA019V2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL SMPS L6565 3PHASE APP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $31.097 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA019V2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD EVAL SMPS L6565 3PHASE APP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1032 pcs | Data sheet | 3-Phase 80W WMPS Application Note AN2495L6565STC04IE170HV |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 24V |
| Voltage - Input | - | Utilized IC / Part | L6565, STC04IE170HV |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Power - Output | 80W |
| Outputs and Type | 1, Isolated | Other Names | 497-6339 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | - |
| Detailed Description | L6565, STC04IE170HV - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board | Current - Output | 3.33A |
| Board Type | Fully Populated |
