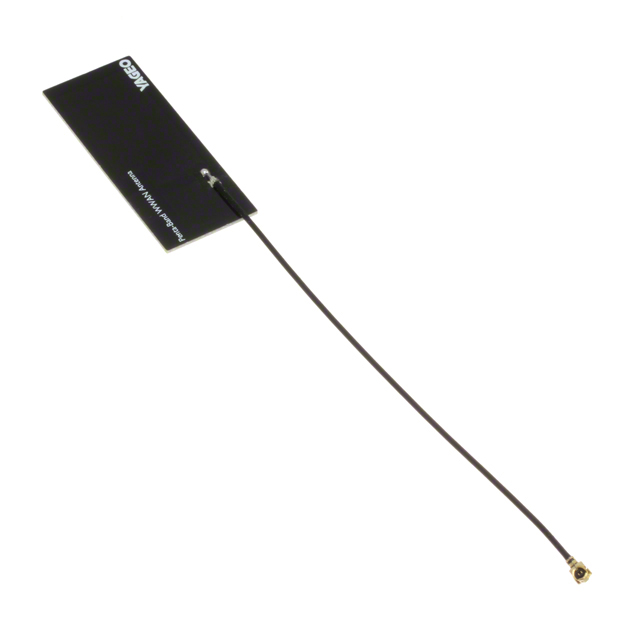

ANTX100P001BWPEN3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANTX100P001BWPEN3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANTX100P001BWPEN3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANTX100P001BWPEN3 |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $3.12 | $2.807 | $2.558 | $2.308 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.121 | $1.934 | $1.684 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANTX100P001BWPEN3 | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20473 pcs | Data sheet | ANTX100P001BWPEN3 |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Cable (100mm) - IPEX | Series | - |
| Return Loss | - | Power - Max | 1W |
| Packaging | Bulk | Other Names | 311-1552 |
| Number of Bands | 5 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.037" (0.95mm) | Gain | 4.2dBi, 5.1dBi, 3.9dBi, 5dBi, 4.5dBi |
| Frequency Range | - | Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | Features | - |
| Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz Bluetooth, Wi-Fi, Zigbee™ Flat Patch RF Antenna 4.2dBi, 5.1dBi, 3.9dBi, 5dBi, 4.5dBi Cable (100mm) - IPEX Adhesive | Applications | Bluetooth, Wi-Fi, Zigbee™ |
| Antenna Type | Flat Patch |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
