ANTX100P001B24553

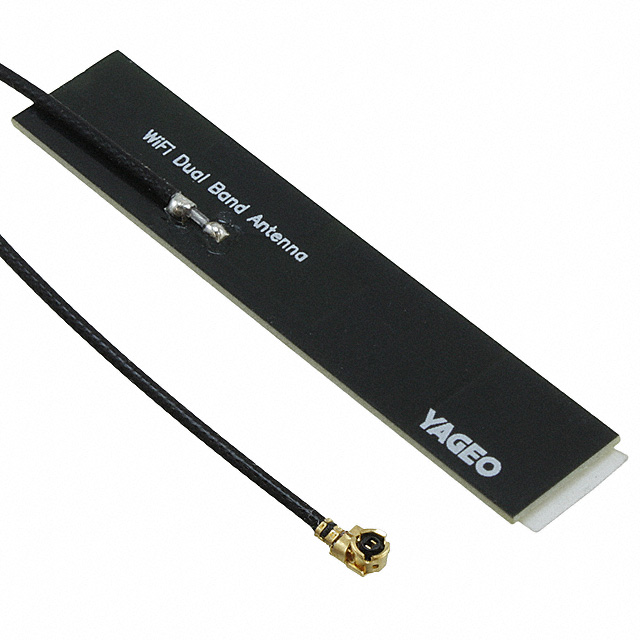

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANTX100P001B24553 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANTX100P001B24553 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANTX100P001B24553 |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 2.4GHZ/5.5GHZ FLAT PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.233 | $2.01 | $1.832 | $1.653 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.519 | $1.385 | $1.206 | $1.161 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANTX100P001B24553 | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.5GHZ FLAT PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31376 pcs | Data sheet | ANTX100P001B24553 |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Connector, IPEX | Series | - |
| Return Loss | - | Power - Max | 1W |
| Packaging | Bulk | Other Names | 311-1551 |
| Number of Bands | 2 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.037" (0.95mm) | Gain | 4.6dBi, 3.9dBi |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | Features | - |
| Detailed Description | 2.4GHz, 5.5GHz Bluetooth, WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz 4.6dBi, 3.9dBi Connector, IPEX Adhesive | Applications | Bluetooth, WLAN, Zigbee™ |
| Antenna Type | Flat Patch |
