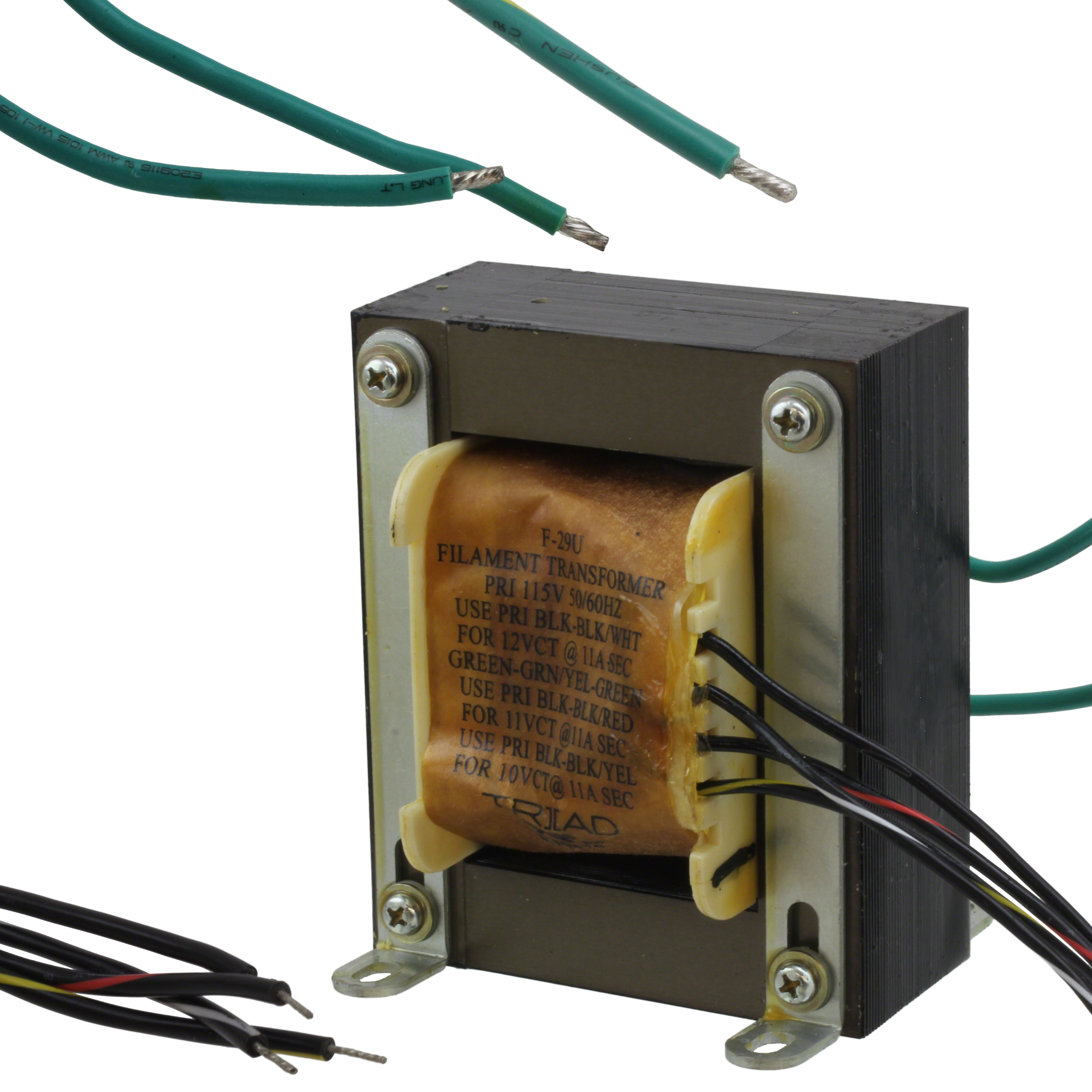

F-29U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-29U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-29U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-29U |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.746 | $13.288 | $12.372 | $11.455 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-29U | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2949 pcs | Data sheet | F-29U Datasheet |
| Category | Transformers | Weight | 6.5 lbs (2.9kg) |
| Voltage - Secondary (Full Load) | 10V, 11V, 12V | Voltage - Primary | 115V |
| Voltage - Isolation | 3000Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 88.90mm L x 85.73mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 132 VA |
| Other Names | 237-1959 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 104.77mm |
| Current - Output (Max) | 11A | Center Tap | Yes |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
