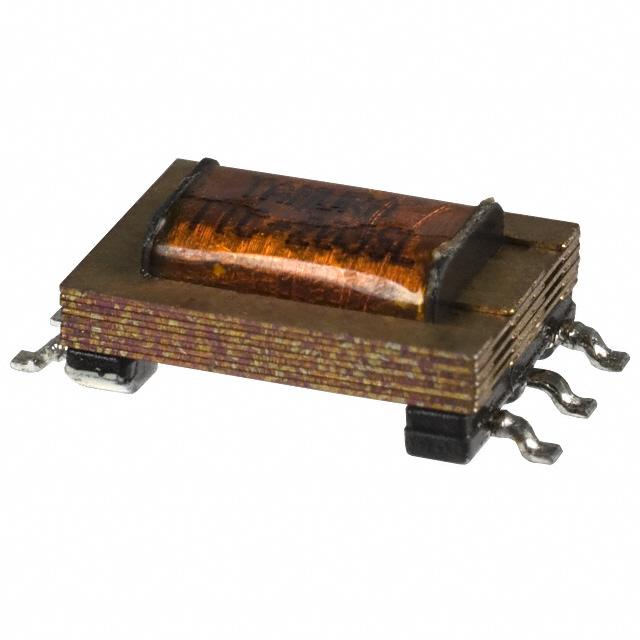

TTC-203SL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-203SL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-203SL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-203SL |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF TELE PCMCIA TOP MNT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-203SL | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE PCMCIA TOP MNT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4273 pcs | Data sheet | TSL203, TTC-203SL |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1000VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | Gull Wing |
| Size / Dimension | 0.330" L x 0.402" W (8.38mm x 10.20mm) | Series | TTC |
| Return Loss | 25dB Min @ 300Hz ~ 3.5kHz | Power Level | 10mW |
| Packaging | - | Other Names | MT4122 TSL203 TSL203(BOX) TSL203(BULK) |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 2.7dB @ 1kHz | Impedance - Secondary (Ohms) | 346 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.164" (4.16mm) |
| Frequency Response | -0.35dB ~ 0.15dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 150 Ohm | DC Resistance (DCR) - Primary | 127 Ohm |
| Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
