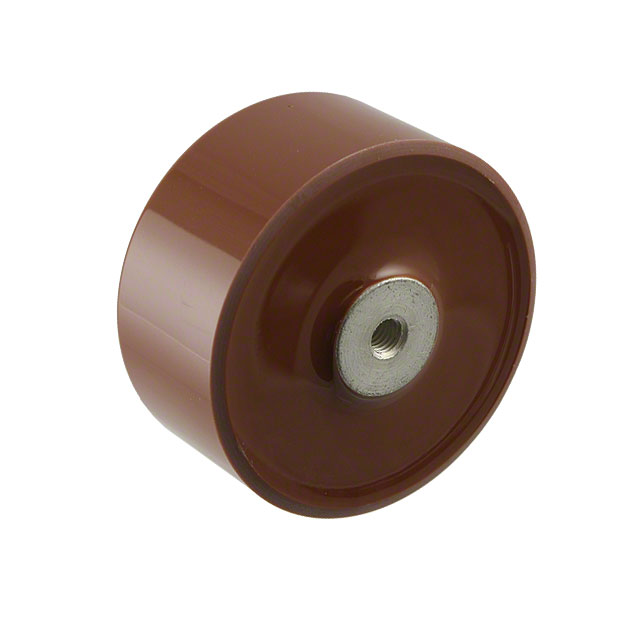

UHV-5A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UHV-5A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UHV-5A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UHV-5A |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CAP CER 1700PF 30KV Z5T DISK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5 pcs | ||||
|---|---|---|---|---|---|
| $26.537 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | UHV-5A | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CAP CER 1700PF 30KV Z5T DISK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1388 pcs | Data sheet | UHV Series |
| Category | Capacitors | Voltage - Rated | 30000V (30kV) |
| Tolerance | ±10% | Thickness (Max) | - |
| Temperature Coefficient | Z5T | Size / Dimension | 1.890" Dia x 1.024" L (48.00mm x 26.00mm) |
| Series | UHV | Ratings | - |
| Packaging | Bulk | Package / Case | Disk, Metal Fitting - Threaded |
| Other Names | 445-2270 UHV-5A-ND UHV5A |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Requires Holder | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Style | - |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | - | Features | High Voltage, Low Dissipation Factor |
| Failure Rate | - | Detailed Description | 1700pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded |
| Capacitance | 1700pF | Applications | General Purpose |
