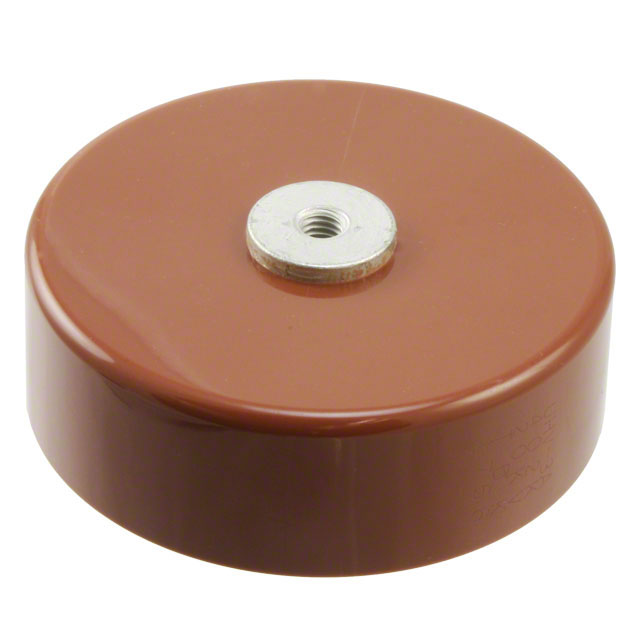

UHV-3A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UHV-3A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UHV-3A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UHV-3A |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CAP CER 4000PF 20KV Z5T DISK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $26.408 | $24.758 | $21.757 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | UHV-3A | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CAP CER 4000PF 20KV Z5T DISK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1817 pcs | Data sheet | UHV Series |
| Category | Capacitors | Voltage - Rated | 20000V (20kV) |
| Tolerance | ±10% | Thickness (Max) | - |
| Temperature Coefficient | Z5T | Size / Dimension | 2.362" Dia x 0.906" L (60.00mm x 23.00mm) |
| Series | UHV | Ratings | - |
| Packaging | Bulk | Package / Case | Disk, Metal Fitting - Threaded |
| Other Names | 445-2268 445-2268-ND 445-3908 60750ZT402K4DDA UHV-3A-ND UHV3A |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Requires Holder | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Style | - |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | - | Features | High Voltage, Low Dissipation Factor |
| Failure Rate | - | Detailed Description | 4000pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded |
| Capacitance | 4000pF | Applications | General Purpose |
