MMCX-P-C-H-ST-CA2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMCX-P-C-H-ST-CA2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMCX-P-C-H-ST-CA2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMCX-P-C-H-ST-CA2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MMCX PLUG STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.388 | $1.332 | $1.221 | $1.166 | $1.11 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.972 | $0.944 | $0.805 | $0.749 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMCX-P-C-H-ST-CA2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MMCX PLUG STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42610 pcs | Data sheet | MMCX Series DatasheetMMCX-P-C-H(N)-ST-CA2 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | - |
| Other Names | MMCX-P-C-H-ST-CA2-ND SAM11502 |
Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

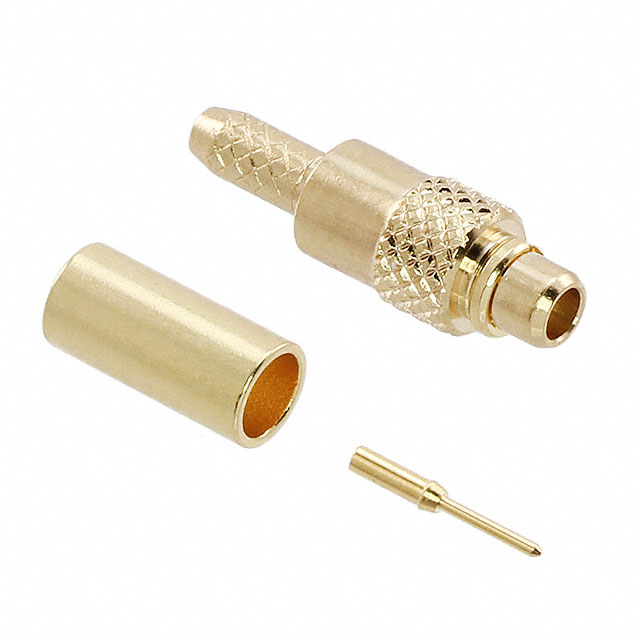

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MMCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | MMCX |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-178 | Body Material | Brass |
| Body Finish | Gold |
