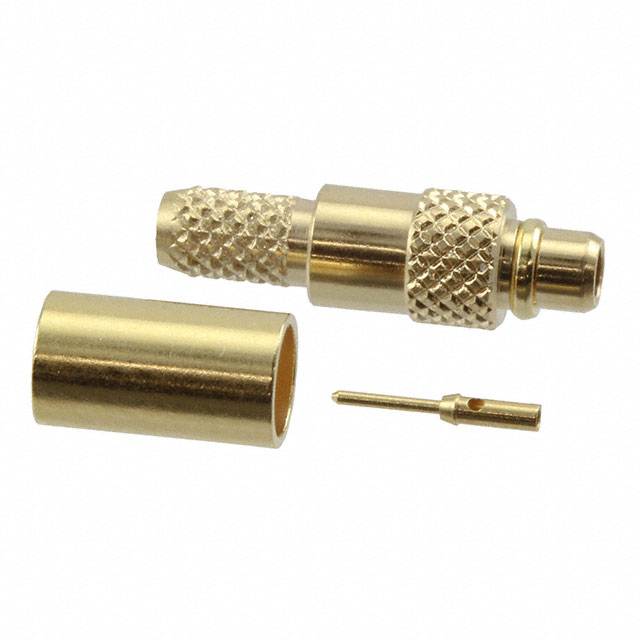

MMCX-P-C-H-ST-CA1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMCX-P-C-H-ST-CA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMCX-P-C-H-ST-CA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMCX-P-C-H-ST-CA1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MMCX PLUG STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.355 | $1.301 | $1.193 | $1.138 | $1.084 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.949 | $0.922 | $0.786 | $0.732 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMCX-P-C-H-ST-CA1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MMCX PLUG STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46871 pcs | Data sheet | MMCX-P-C-H-ST-CA1 DrawingMMCX Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | - | Other Names | SAM9714 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-174, 316 |
| Body Material | Brass | Body Finish | Gold |
