Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > STEVAL-ILL016V1

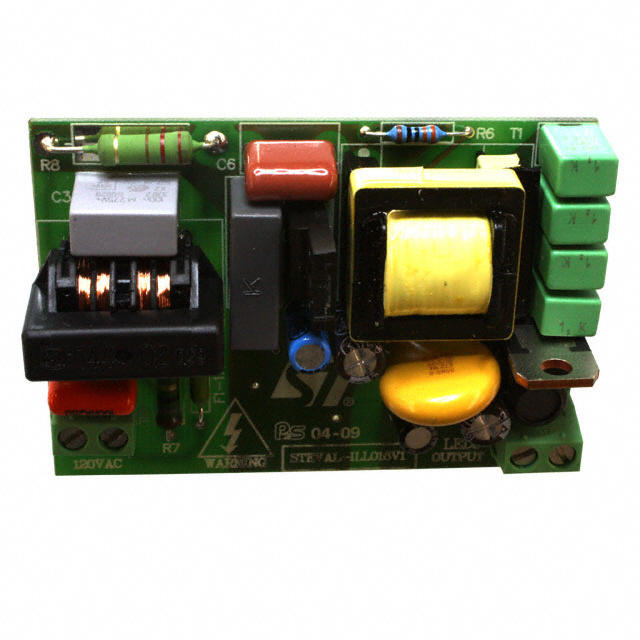

STEVAL-ILL016V1

STEVAL-ILL016V1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ILL016V1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STEVAL-ILL016V1
Manufacturer	STMicroelectronics
Description	BOARD EVAL LD6562AD/TSM1052
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1012 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$32.454

Product parameter
Data sheet

Product parameter

Part Number	STEVAL-ILL016V1	Manufacturer	STMicroelectronics
Description	BOARD EVAL LD6562AD/TSM1052	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1012 pcs	Data sheet	STEVAL-ILL016V2 Data Brief STEVAL-ILL016V1 Data Brief TSM1052
Category	Development Boards, Kits, Programmers	Voltage - Output	40V
Voltage - Input	96 ~ 132 VAC	Utilized IC / Part	LD6562AD, TSM1052
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Isolated	Other Names	497-8408
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Dimmable with Standard TRIAC Dimmer, Power Factor Correction	Detailed Description	LD6562AD, TSM1052 1, Isolated Output LED Driver Evaluation Board
Current - Output / Channel	700mA
