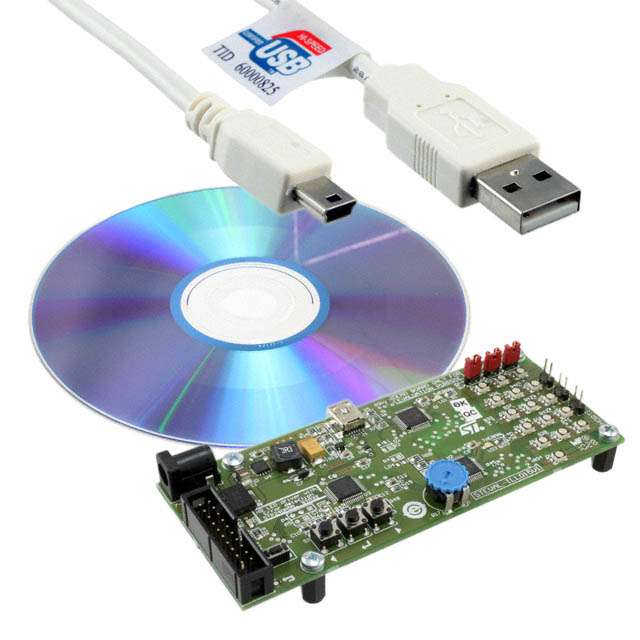

STEVAL-ILL015V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ILL015V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ILL015V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ILL015V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL STP24DP05/STM32 BASED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $29.182 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ILL015V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD EVAL STP24DP05/STM32 BASED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1213 pcs | Data sheet | STEVAL-ILL015V1 Data BriefSTEVAL-ILL015V1 Appl Note |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 20V |
| Voltage - Input | 7.5 V ~ 18 V | Utilized IC / Part | STP24DP05 |
| Supplied Contents | Board(s), Cable(s) | Series | - |
| Outputs and Type | 16 RGB, Non-Isolated | Other Names | 497-8490 STEVALILL015V1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | 24-Bit with Diagnostic Feature | Detailed Description | STP24DP05 16 RGB, Non-Isolated Output LED Driver Evaluation Board |
| Current - Output / Channel | 80mA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
