TX8111NLT

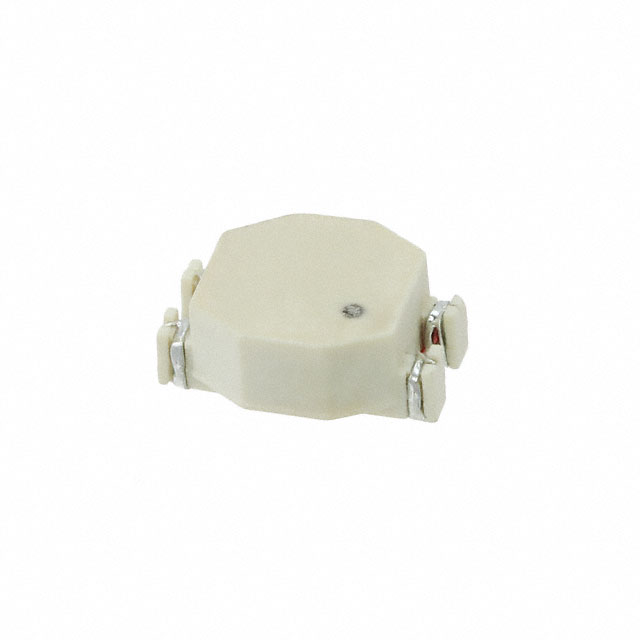

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TX8111NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TX8111NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TX8111NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 51UH 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1600 pcs | 3200 pcs | |||
|---|---|---|---|---|---|
| $0.558 | $0.54 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TX8111NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 51UH 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58008 pcs | Data sheet | TX8111NL |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.248" L x 0.260" W (6.30mm x 6.60mm) |
| Series | - | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 553-3874-2 TX8111NLT-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 51µH @ 100kHz |
| Height (Max) | 0.161" (4.10mm) | Filter Type | - |
| Features | - | Detailed Description | 51µH @ 100kHz 2 Line Common Mode Choke Surface Mount DCR 200 mOhm |
| DC Resistance (DCR) (Max) | 200 mOhm | Current Rating (Max) | - |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
