TX80/40/15-3C11

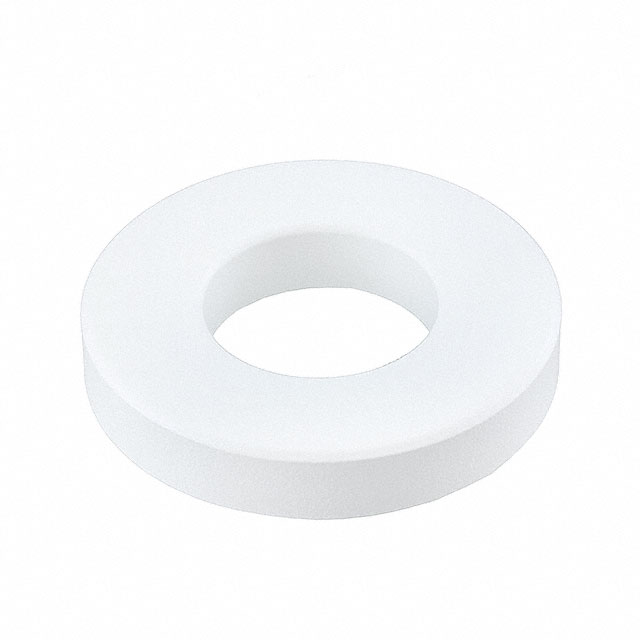

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TX80/40/15-3C11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TX80/40/15-3C11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TX80/40/15-3C11 |
|---|---|
| Manufacturer | FERROXCUBE |
| Description | FERRITE CORES ROUND |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.614 | $5.954 | $4.498 | $4.366 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.837 | $3.519 | $3.36 | $3.308 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TX80/40/15-3C11 | Manufacturer | FERROXCUBE |
|---|---|---|---|
| Description | FERRITE CORES ROUND | Lead Free Status / RoHS Status | |
| Quantity Available | 11871 pcs | Data sheet | T(X)80/40/15 Spec |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±25% | Supplier Device Package | TX 80 x 40 x 15 |
| Series | * | Other Names | 1779-1681 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material | 3C11 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | - |
| Height | 15.90mm | Gap | Ungapped |
| Finish | Epoxy | Effective Permeability (µe) | 4300 |
| Effective Magnetic Volume (Ve) mm³ | 50200 | Effective Length (le) mm | 174 |
| Effective Area (Ae) mm² | 288 | Diameter | 83.00mm |
| Core Type | Toroid | Core Factor (ΣI/A) mm1 | 0.604 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
