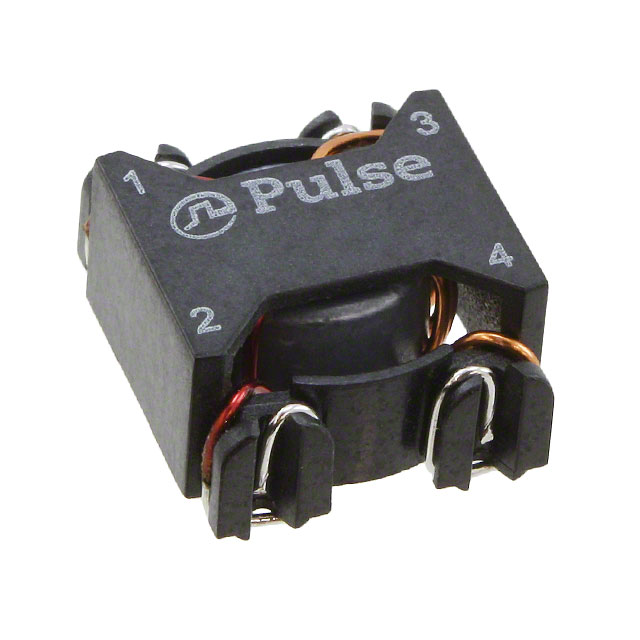

PA2749NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA2749NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA2749NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA2749NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 3.8A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.714 | $0.604 | $0.461 | |||
| 510 pcs | 1020 pcs | 2520 pcs | |||
| $0.373 | $0.34 | $0.329 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA2749NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3.8A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62325 pcs | Data sheet | PA27xxNL Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.560" L x 0.646" W (14.22mm x 16.40mm) |
| Series | - | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 553-2187 553-2187-5 553-2187-ND PA2749NL-ND |
Operating Temperature | -40°C ~ 130°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.350" (8.90mm) |
| Filter Type | - | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 3.8A DCR 17.1 mOhm | DC Resistance (DCR) (Max) | 17.1 mOhm |
| Current Rating (Max) | 3.8A | Approvals | - |
