PA2744NL

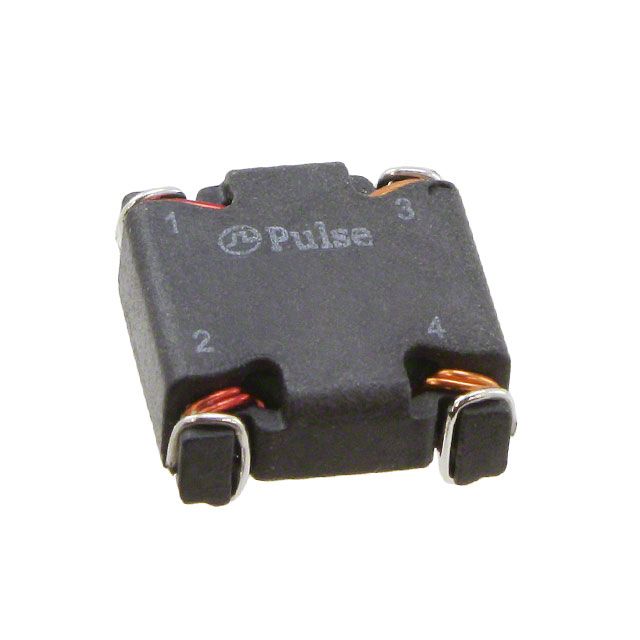

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA2744NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA2744NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA2744NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 4A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.669 | $0.564 | $0.431 | |||
| 520 pcs | 1000 pcs | 2520 pcs | |||
| $0.349 | $0.318 | $0.308 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA2744NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 4A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78049 pcs | Data sheet | PA27xxNL Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Series | - | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 553-2182 PA2744NL-ND |
Operating Temperature | -40°C ~ 130°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.220" (5.60mm) |
| Filter Type | - | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 4A DCR 13.2 mOhm | DC Resistance (DCR) (Max) | 13.2 mOhm |
| Current Rating (Max) | 4A | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
