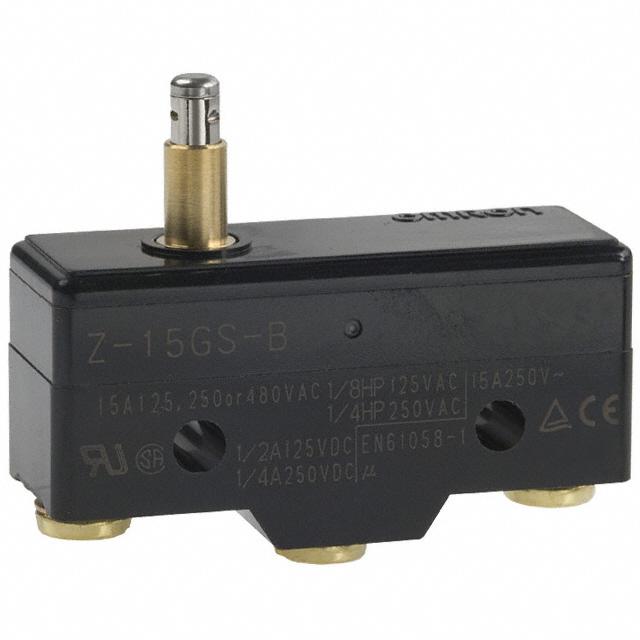

Z-15GS-B
![Z-15GS-B](/thumb/medium/fb/Z-15GS-B.jpg)
![](/upfile/linecard/medium_Omron-Automation%26Safety.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy Z-15GS-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy Z-15GS-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | Z-15GS-B |
---|---|
Manufacturer | Omron Automation & Safety |
Description | SWITCH SNAP ACTION SPDT 15A 125V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
---|---|---|---|---|---|
$5.638 | $4.374 | $4.144 | $3.913 | ||
100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
$3.568 | $3.338 | $3.223 | $3.108 |
- Product parameter
- Data sheet
Product parameter
Part Number | Z-15GS-B | Manufacturer | Omron Automation & Safety |
---|---|---|---|
Description | SWITCH SNAP ACTION SPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 11830 pcs | Data sheet | Z Series |
Category | Switches | Voltage Rating - DC | 30V |
Voltage Rating - AC | 125V | Termination Style | Screw Terminal |
Switch Function | On-Mom | Series | Z |
Release Force | 114gf | Pretravel | 0.015" (0.4mm) |
Packaging | Bulk | Overtravel | 0.062" (1.6mm) |
Other Names | SW892 Z-15GS-B-ND Z15GS-B Z15GSB |
Operating Temperature | -25°C ~ 80°C |
Operating Position | 1.110" (28.2mm) | Operating Force | 250 ~ 350gf |
Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mechanical Life | 20,000,000 Cycles | Manufacturer Standard Lead Time | 5 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP00 |
Features | - | Electrical Life | 500,000 Cycles |
Differential Travel | 0.002" (0.05mm) | Current Rating | 15A (AC), 6A (DC) |
Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
