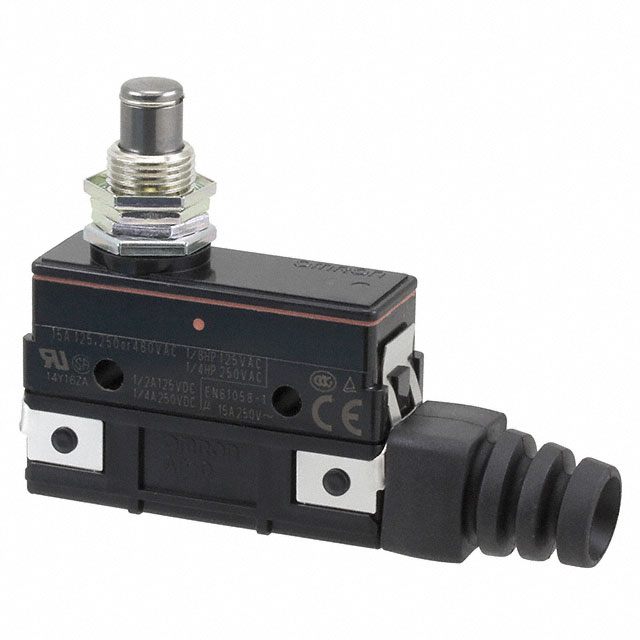

Z-15GQA55-B5V


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy Z-15GQA55-B5V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy Z-15GQA55-B5V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | Z-15GQA55-B5V |
---|---|
Manufacturer | Omron Automation & Safety |
Description | SWITCH SNAP ACTION SPDT 15A 125V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$24.772 | $21.675 | $19.817 | $18.579 | $17.65 |
- Product parameter
- Data sheet
Product parameter
Part Number | Z-15GQA55-B5V | Manufacturer | Omron Automation & Safety |
---|---|---|---|
Description | SWITCH SNAP ACTION SPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 1986 pcs | Data sheet | Z Series |
Category | Switches | Voltage Rating - DC | 30V |
Voltage Rating - AC | 125V | Termination Style | Screw Terminal |
Switch Function | On-Mom | Series | Z |
Release Force | 114gf | Pretravel | 0.071" (1.8mm) |
Packaging | Bulk | Overtravel | 0.217" (5.5mm) |
Other Names | Z-15GQA55-B5V-ND Z15GQA55B5V Z6287 |
Operating Temperature | -15°C ~ 80°C |
Operating Position | 0.859" (21.8mm) | Operating Force | 540gf |
Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 2 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP62 |
Features | - | Electrical Life | 500,000 Cycles |
Differential Travel | 0.002" (0.05mm) | Current Rating | 15A (AC), 6A (DC) |
Circuit | SPDT | Actuator Type | Overtravel Plunger |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
