LR QH9F-P2R1-1

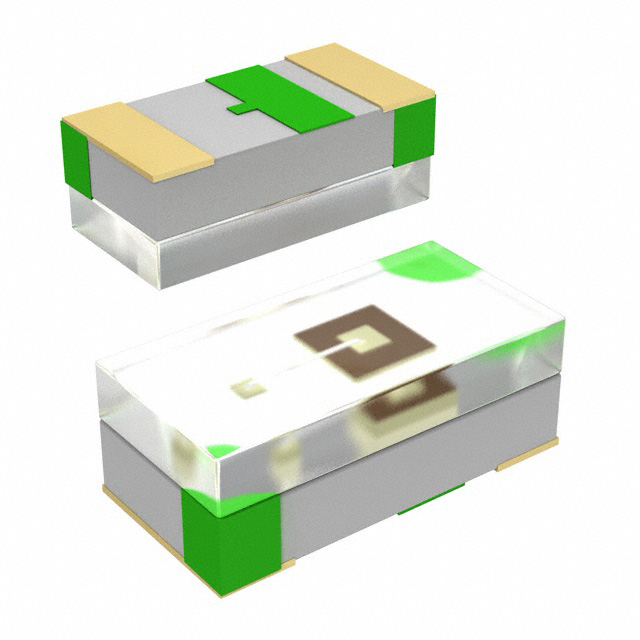

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR QH9F-P2R1-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LR QH9F-P2R1-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LR QH9F-P2R1-1 |
|---|---|
| Manufacturer | OSRAM Opto Semiconductors, Inc. |
| Description | LED RED DIFFUSED SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LR QH9F-P2R1-1 | Manufacturer | OSRAM Opto Semiconductors, Inc. |
|---|---|---|---|
| Description | LED RED DIFFUSED SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4188 pcs | Data sheet | L(R,Y) QH9F |
| Category | Optoelectronics | Wavelength - Peak | 632nm |
| Wavelength - Dominant | 625nm | Voltage - Forward (Vf) (Typ) | 2.2V |
| Viewing Angle | 120°, 130° | Size / Dimension | 1.00mm L x 0.50mm W |
| Series | CHIPLED 0402 | Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) | Other Names | LR QH9F-P2R1-1-ND LRQH9F-P2R1-1 Q65110A8031 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Millicandela Rating | 98mcd | Lens Transparency | Diffused |
| Lens Style/Size | Rectangle with Flat Top, 1.00mm x 0.50mm | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.40mm |
| Features | - | Detailed Description | Red 625nm LED Indication - Discrete 2.2V 0402 (1005 Metric) |
| Current - Test | 5mA | Configuration | Standard |
| Color | Red |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
