LR E6SF-ABCA-1-1-Z

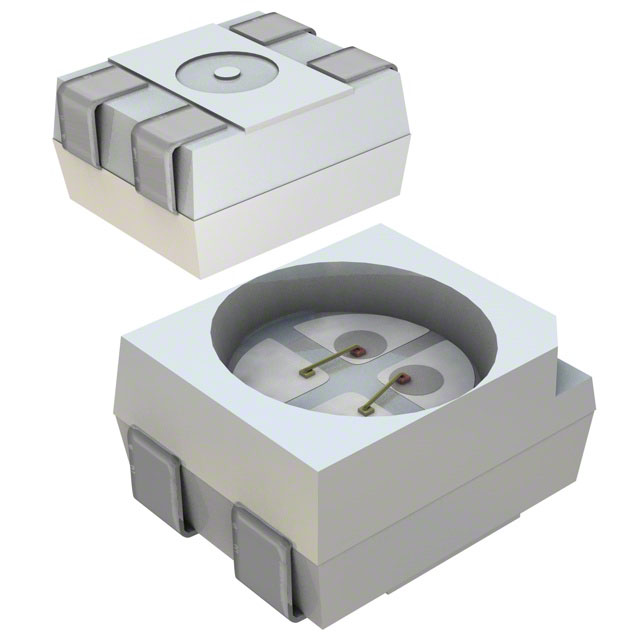

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR E6SF-ABCA-1-1-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LR E6SF-ABCA-1-1-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LR E6SF-ABCA-1-1-Z |
|---|---|
| Manufacturer | OSRAM Opto Semiconductors, Inc. |
| Description | LED RED CLEAR 4PLCC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.066 | $0.062 | $0.06 | $0.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LR E6SF-ABCA-1-1-Z | Manufacturer | OSRAM Opto Semiconductors, Inc. |
|---|---|---|---|
| Description | LED RED CLEAR 4PLCC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 410924 pcs | Data sheet | LS,LR,LA,LO,LY_E6SF |
| Category | Optoelectronics | Wavelength - Peak | 633nm |
| Wavelength - Dominant | 625nm | Voltage - Forward (Vf) (Typ) | 2.15V |
| Viewing Angle | 120° | Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | Series | Advanced Power TOPLED® |
| Packaging | Tape & Reel (TR) | Package / Case | 4-PLCC |
| Other Names | 475-3426-2 LR E6SF-ABCA-1-1 LR E6SF-ABCA-1-1-Z-ND LRE6SF-ABCA-1-1 LRE6SF-ABCA-1-1-Z LRE6SFABCA11 LRE6SFABCA11Z Q65111A0958 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Millicandela Rating | 2475mcd |
| Manufacturer Standard Lead Time | 14 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 2.40mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.10mm |
| Features | - | Detailed Description | Red 625nm LED Indication - Discrete 2.15V 4-PLCC |
| Current - Test | 50mA | Configuration | Standard |
| Color | Red |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
