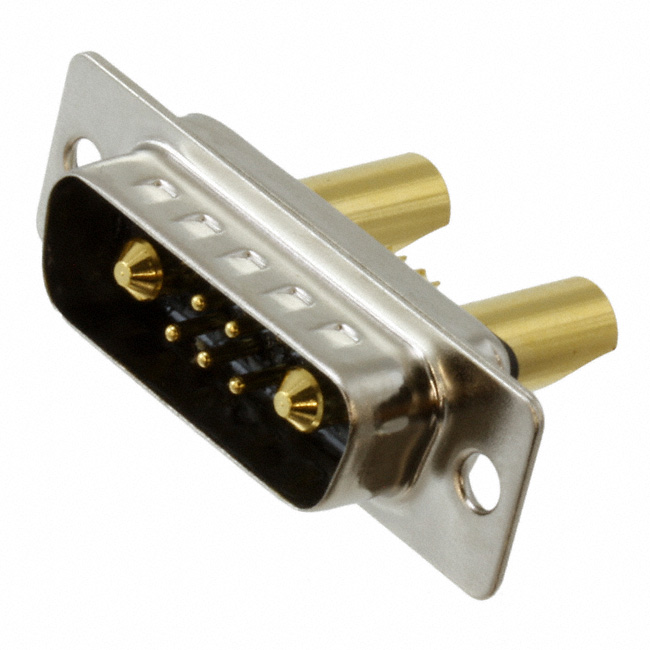

680S7W2103L401
![680S7W2103L401](/thumb/medium/3d/680S7W2103L401.jpg)
![](/upfile/linecard/medium_NorComp.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680S7W2103L401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680S7W2103L401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 680S7W2103L401 |
---|---|
Manufacturer | NorComp |
Description | CONN D-SUB PLUG 7POS PNL MNT |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | |
---|---|---|---|---|---|
$3.944 | $3.772 | $3.429 | $3.258 | ||
160 pcs | 320 pcs | 560 pcs | 1040 pcs | ||
$3.172 | $2.829 | $2.658 | $2.349 |
- Product parameter
- Data sheet
Product parameter
Part Number | 680S7W2103L401 | Manufacturer | NorComp |
---|---|---|---|
Description | CONN D-SUB PLUG 7POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 14017 pcs | Data sheet | Seal-D® Brochure680S7W2103Lyy1 Drawing |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | - | Termination | Solder Cup |
Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Nickel Plated |
Series | Seal-D 680S | Packaging | Tray |
Other Names | 680S7W2103L401-ND NOR1201 |
Operating Temperature | -55°C ~ 155°C |
Number of Rows | 2 | Number of Positions | 7 (5 + 2 Power) |
Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
Features | Grounding Indents | Detailed Description | 7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector |
Current Rating | 5A, 40A | Contact Type | Signal and Power |
Contact Material | Copper Alloy | Contact Form | - |
Contact Finish Thickness | Flash | Contact Finish | Gold |
Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
Color | Black | Backset Spacing | - |
