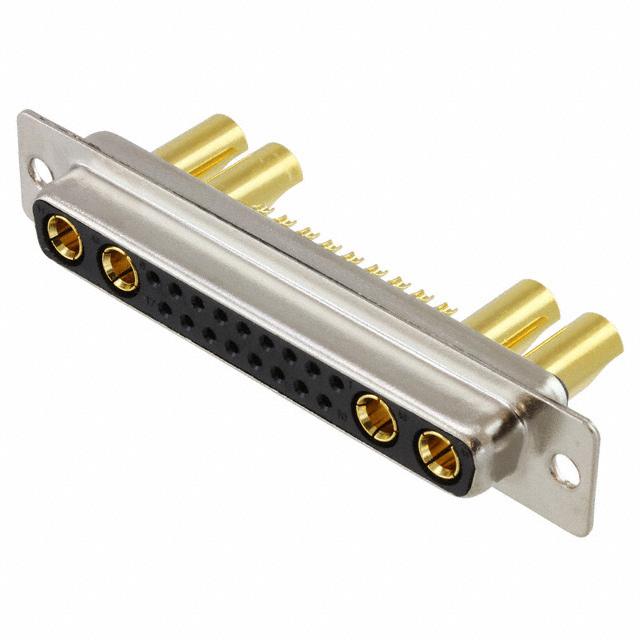

680S21WA4SL401
![680S21WA4SL401](/thumb/medium/41/680S21WA4SL401.jpg)
![](/upfile/linecard/medium_NorComp.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680S21WA4SL401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680S21WA4SL401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 680S21WA4SL401 |
---|---|
Manufacturer | NorComp |
Description | CONN D-SUB RCPT 21POS PNL MNT |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 40 pcs | ||||
---|---|---|---|---|---|
$6.135 |
- Product parameter
- Data sheet
Product parameter
Part Number | 680S21WA4SL401 | Manufacturer | NorComp |
---|---|---|---|
Description | CONN D-SUB RCPT 21POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6212 pcs | Data sheet | Seal-D® Brochure680S21WA4SLxx1 Drawing |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | - | Termination | Solder Cup |
Shell Size, Connector Layout | 4 (DC, C) - 21WA4 | Shell Material, Finish | Steel, Nickel Plated |
Series | Seal-D 680S | Packaging | Tray |
Other Names | NOR1229 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions | 21 (17 + 4 Power) |
Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
Features | - | Detailed Description | 21 (17 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
Current Rating | 3A, 40A | Contact Type | Signal and Power |
Contact Material | Brass | Contact Form | Machined |
Contact Finish Thickness | Flash | Contact Finish | Gold |
Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
Color | Black | Backset Spacing | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
