SG7815K

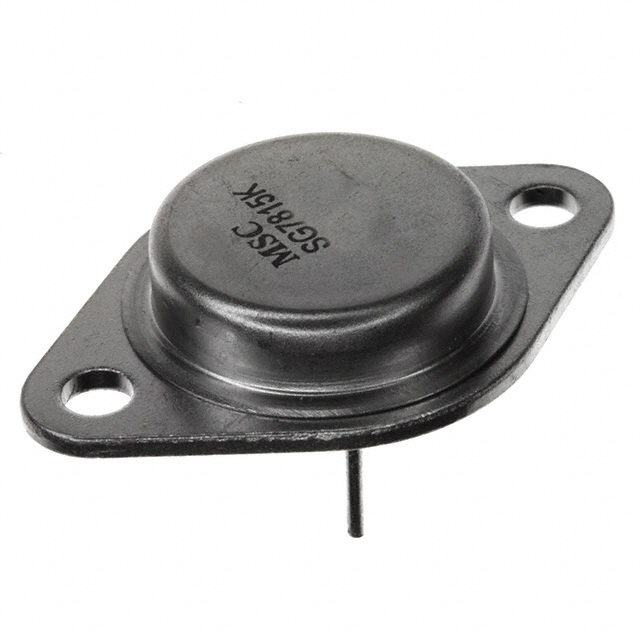

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG7815K with confidence from Components-World.HK, 1 Year Warranty
Dowload SG7815K Details in PDFSee Product Specifications for product details.
Buy SG7815K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG7815K |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR 1.5A TO3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG7815K | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR 1.5A TO3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5420 pcs | Data sheet | SG78xx(A) Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 2.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 15V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 35V | Supplier Device Package | TO-204AD (TO-3) |
| Series | Military, MIL-STD-883 | Protection Features | Over Current, Over Temperature |
| Packaging | Bulk | Package / Case | TO-204AA, TO-3 |
| PSRR | 60dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Operating Temperature | -55°C ~ 125°C (TA) |
| Number of Regulators | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 15V 1.5A TO-204AD (TO-3) | Current - Supply (Max) | 7mA |
| Current - Output | 1.5A | Control Features | Current Limit, Enable |
| Base Part Number | SG7815 |
