SG7812K-JAN

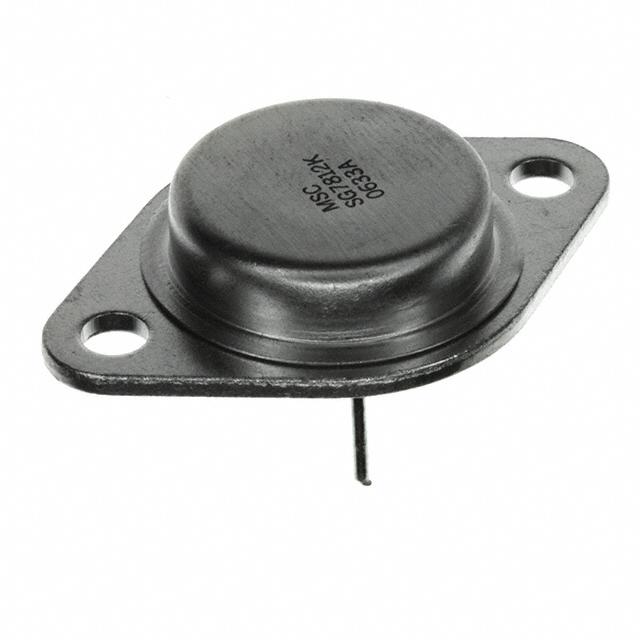

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG7812K-JAN with confidence from Components-World.HK, 1 Year Warranty
Dowload SG7812K-JAN Details in PDFSee Product Specifications for product details.
Buy SG7812K-JAN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG7812K-JAN |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR 12V 1.5A TO3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG7812K-JAN | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR 12V 1.5A TO3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5596 pcs | Data sheet | SG78xx(A) Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 2.5V @ 1A |
| Voltage - Output (Min/Fixed) | 12V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 35V | Supplier Device Package | TO-3 |
| Series | Military, MIL-STD-883 | Protection Features | Over Current, Over Temperature |
| Packaging | Tray | Package / Case | TO-204AA, TO-3 |
| PSRR | 61dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 1259-1039 1259-1039-MIL M38510/10707BYA SG7812KJAN |
| Operating Temperature | -55°C ~ 125°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 12V 1.5A TO-3 |
| Current - Quiescent (Iq) | 7mA | Current - Output | 1.5A |
| Control Features | - | Base Part Number | SG7812 |
