Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > M80-8760522

M80-8760522

M80-8760522
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-8760522 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number M80-8760522
Manufacturer Harwin

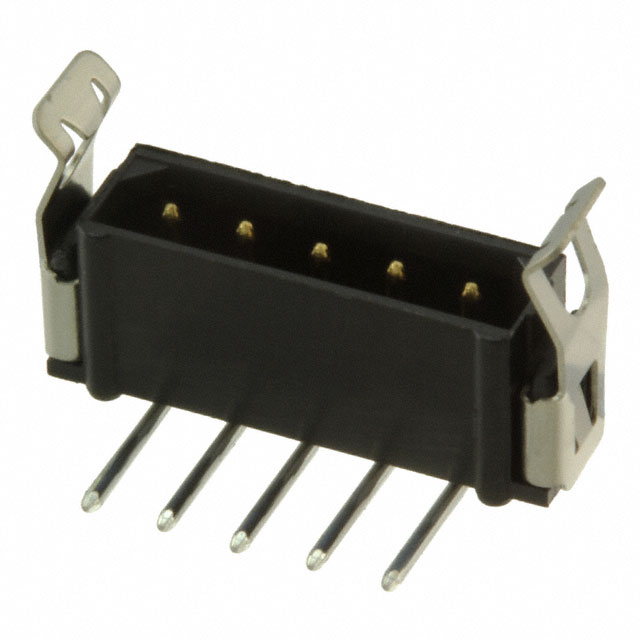

Description CONN HDR 2MM R/A W/LATCH 5POS
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
In Stock 52917 pcs
Reference Price
(In US Dollars)
1 pcs18 pcs108 pcs
$1.211$1.164$0.97
504 pcs1008 pcs5004 pcs
$0.824$0.703$0.63

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.211

Product parameter

Part Number M80-8760522 Manufacturer Harwin
Description CONN HDR 2MM R/A W/LATCH 5POS Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 52917 pcs Data sheet M80, M83 Series Spec SheetM80-876 Drawing
Category Connectors, Interconnects Voltage Rating 120V
Termination Solder Style Board to Board or Cable
Shrouding Shrouded - 4 Wall Series Datamate L-Tek
Row Spacing - Mating - Pitch - Mating 0.079" (2.00mm)
Packaging Tube Overall Contact Length -
Other Names 952-2964
B5743-105-M-L-1
M80-8760522-ND
Operating Temperature -55°C ~ 125°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 5 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 6 Weeks
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height 0.156" (3.96mm) Insulation Color Black
Ingress Protection - Features Strain Relief Clips
Fastening Type Latch Lock Detailed Description Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
Current Rating 2.2A Contact Type Male Pin
Contact Shape Circular Contact Material Phosphor Bronze
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating -
Contact Finish Thickness - Post 118.1µin (3.00µm) Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Finish - Post Tin-Lead Contact Finish - Mating Gold
Connector Type Header Applications -
