Part Number | M80-8692622 |
---|---|
Manufacturer | Harwin |

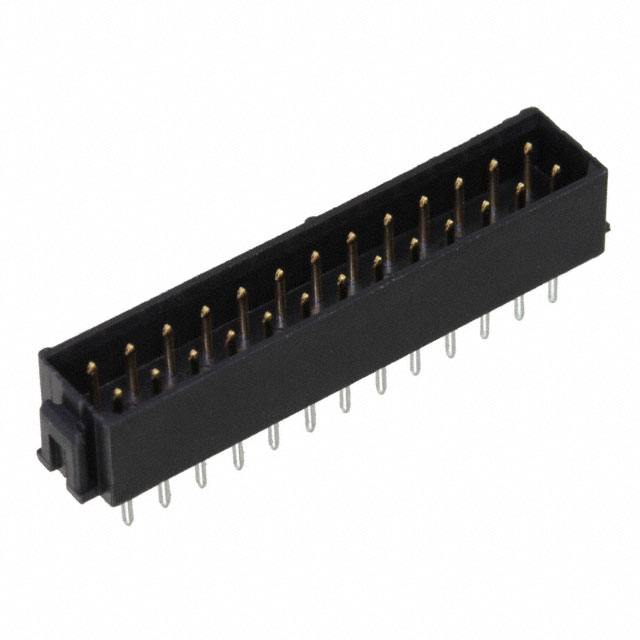

Description | CONN HDR 2MM VERT DUAL 26POS |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | 1 pcs | 16 pcs | 104 pcs | 504 pcs | 1000 pcs |
---|---|---|---|---|---|
$1.745 | $1.674 | $1.395 | $1.186 | $1.011 |
- Product parameter
- Data sheet
Product parameter
Part Number | M80-8692622 | Manufacturer | Harwin |
---|---|---|---|
Description | CONN HDR 2MM VERT DUAL 26POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 38367 pcs | Data sheet | M80, M83 Series Spec SheetM80-869 Drawing |
Category | Connectors, Interconnects | Voltage Rating | 800V |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 4 Wall | Series | Datamate L-Tek |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | 952-2961 B5743-226-M-T-0 M80-8692622-ND |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 26 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 7.23mm, 7.85mm, 10.2mm, 13.51mm | Manufacturer Standard Lead Time | 6 Weeks |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester, Glass Filled |
Insulation Height | 0.219" (5.56mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 26 position 0.079" (2.00mm) |
Current Rating | 2.2A | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
Connector Type | Plug | Applications | - |
