Home > Products > Sensors, Transducers > Magnetic Sensors - Switches (Solid State) > AH276UZ4-CG1

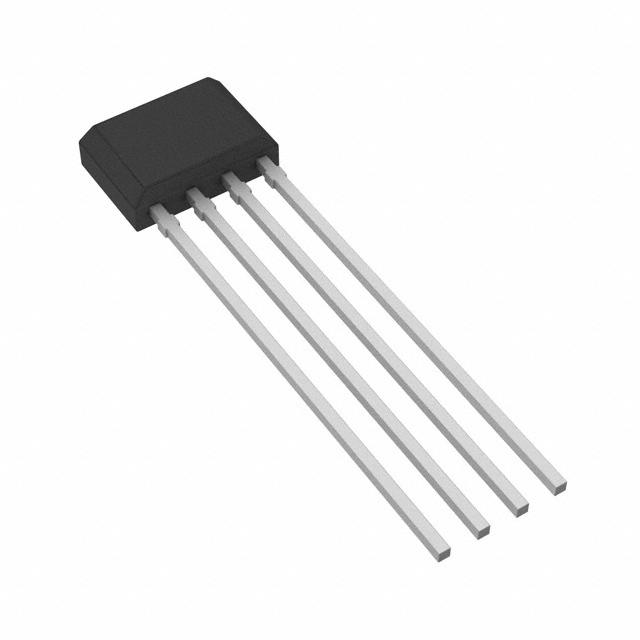

AH276UZ4-CG1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH276UZ4-CG1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AH276UZ4-CG1
Manufacturer	Diodes Incorporated
Description	MAGNETIC SWITCH LATCH TO94
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1142779 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.02

Product parameter

Product parameter

Part Number	AH276UZ4-CG1	Manufacturer	Diodes Incorporated
Description	MAGNETIC SWITCH LATCH TO94	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1142779 pcs	Data sheet
Category	Sensors, Transducers	Voltage - Supply	3.5 V ~ 16 V
Test Condition	25°C	Technology	Hall Effect
Supplier Device Package	TO-94	Series	-
Sensing Range	10mT Trip, -10mT Release	Polarization	South Pole
Packaging	Bulk	Package / Case	4-SIP
Output Type	Open Collector	Other Names	AH276UZ4-CG1DI
Operating Temperature	-20°C ~ 85°C (TA)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Latch	Features	Temperature Compensated
Detailed Description	Digital Switch Latch Open Collector Hall Effect TO-94	Current - Supply (Max)	16mA
Current - Output (Max)	350mA
