HLMT-PH00

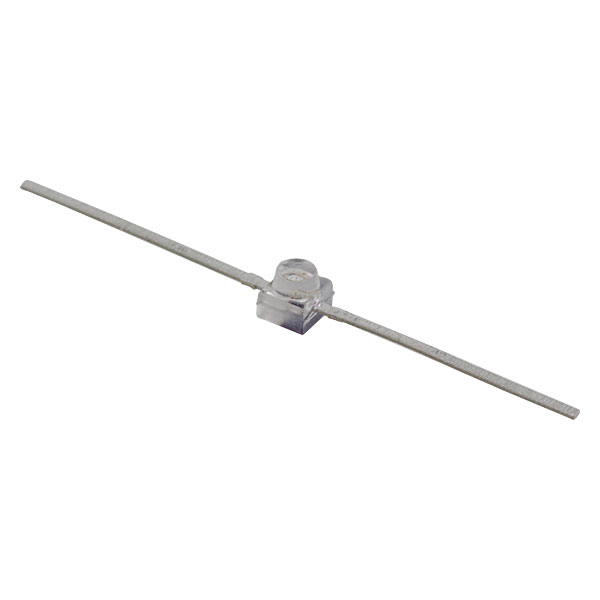

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HLMT-PH00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HLMT-PH00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HLMT-PH00 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RED CLEAR FLAT TOP T/H AXIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.268 | $0.207 | $0.172 | $0.148 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.13 | $0.113 | $0.089 | $0.083 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HLMT-PH00 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED CLEAR FLAT TOP T/H AXIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 232713 pcs | Data sheet | HLMx-Qx00/Px00 |
| Category | Optoelectronics | Wavelength - Peak | 621nm |
| Wavelength - Dominant | 615nm | Voltage - Forward (Vf) (Typ) | 2V |
| Viewing Angle | 125° | Supplier Device Package | Flat Top LED |
| Size / Dimension | 1.99mm L x 2.21mm W | Series | - |
| Packaging | Bulk | Package / Case | Axial, Flat Leads |
| Other Names | 516-2813 HLMT-PH00-ND HLMTPH00 |
Mounting Type | Through Hole, Axial |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 120mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 1.78mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.44mm |
| Features | - | Detailed Description | Red 615nm LED Indication - Discrete 2V Axial, Flat Leads |
| Current - Test | 20mA | Configuration | Standard |
| Color | Red | Base Part Number | HLMT-PH00 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
