HLMT-PH00-P0011

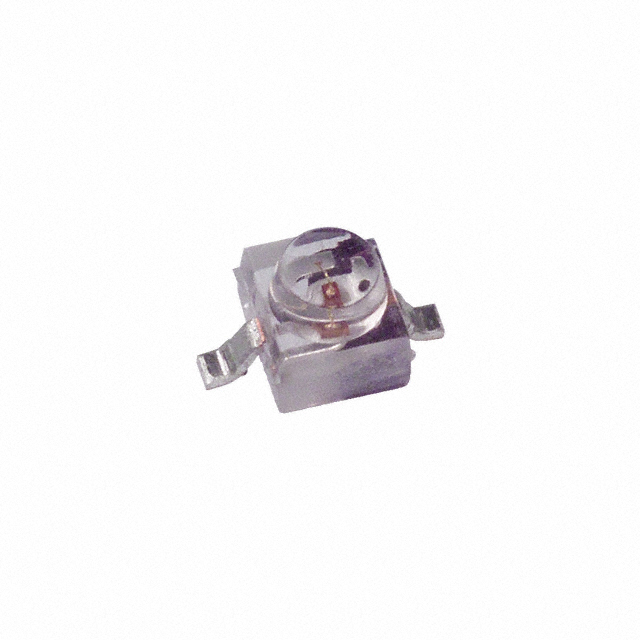

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HLMT-PH00-P0011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HLMT-PH00-P0011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HLMT-PH00-P0011 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RED CLEAR FLAT TOP SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 37500 pcs |
|---|---|---|---|---|---|
| $0.10 | $0.093 | $0.09 | $0.088 | $0.086 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HLMT-PH00-P0011 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED CLEAR FLAT TOP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 230103 pcs | Data sheet | Option 11,12,21,22,31,32,1L,1S,2L,2SLED Solutions Selection GuideHLMx-Qx00/Px00 |
| Category | Optoelectronics | Wavelength - Peak | 621nm |
| Wavelength - Dominant | 615nm | Voltage - Forward (Vf) (Typ) | 2V |
| Viewing Angle | 125° | Supplier Device Package | Flat Top LED |
| Size / Dimension | 1.99mm L x 2.21mm W | Series | SunPower |
| Packaging | Tape & Reel (TR) | Package / Case | 2-SMD, Gull Wing |
| Other Names | 516-1409-2 HLMTPH00P0011 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 120mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 1.91mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.44mm |
| Features | - | Detailed Description | Red 615nm LED Indication - Discrete 2V 2-SMD, Gull Wing |
| Current - Test | 20mA | Configuration | Standard |
| Color | Red | Base Part Number | HLMT-PH00 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
