ACNT-H61L-000E

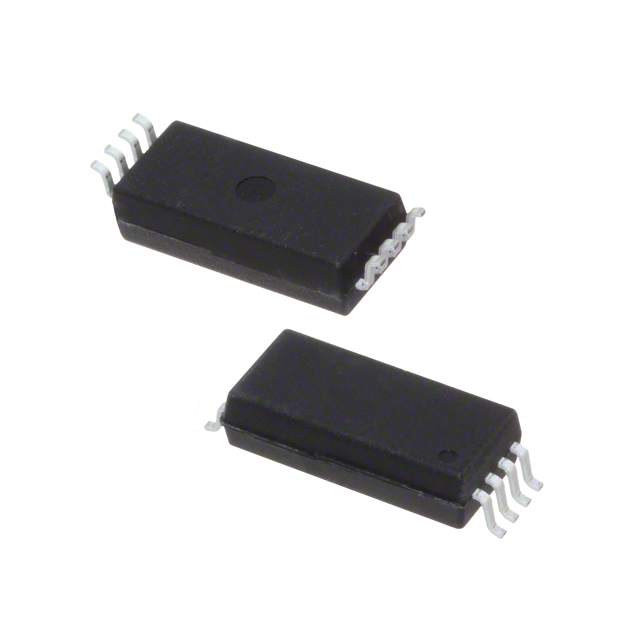

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACNT-H61L-000E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACNT-H61L-000E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACNT-H61L-000E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 7.5KV PUSH PULL 8SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 160 pcs | |
|---|---|---|---|---|---|
| $2.034 | $1.694 | $1.423 | $1.22 | ||
| 320 pcs | 560 pcs | 1040 pcs | 2560 pcs | ||
| $1.084 | $0.982 | $0.901 | $0.864 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACNT-H61L-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 7.5KV PUSH PULL 8SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43078 pcs | Data sheet | ACNT-H61L |
| Category | Isolators | Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Isolation | 7500Vrms | Voltage - Forward (Vf) (Typ) | - |
| Supplier Device Package | 8-SO Stretched | Series | - |
| Rise / Fall Time (Typ) | - | Propagation Delay tpLH / tpHL (Max) | - |
| Packaging | Tube | Package / Case | 8-SOIC (0.535", 13.60mm Width) |
| Output Type | Push-Pull, Totem Pole | Other Names | 516-3442 ACNT-H61L-000E-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 7500Vrms 1 Channel 20kV/µs CMTI 8-SO Stretched | Data Rate | 10MBd |
| Current - DC Forward (If) (Max) | - | Common Mode Transient Immunity (Min) | 20kV/µs |
